Top Notch threading inserts and tool holder

[urbanrifleman]

I've been trying to make these things work and I can't get them to make a good thread. I saw Walt Kraftt was using them and he had a tool holder that had kind of a long point on it. I thought that might be perfect for doing muzzle threads where you have to get really fine threads right up against the shoulder.

I need to find a tool holder that holds the correct angle on the cutter so I guess I need a kennametal, but I want one that's relatively small.

I have had no luck making them work.



[Walt Krafft]

The MSC number for a 1/2" shank holder for those inserts is 88228788.
If you want the same insert with a positive rake that would be a NTK2R MSC 55317449



[gunsandgunsmithing]

Speed is your friend with those. Crank it up!



[urbanrifleman]

The MSC number for a 1/2" shank holder for those inserts is 88228788.
If you want the same insert with a positive rake that would be a NTK2R MSC 55317449

I bought that insert holder.

As far as the inserts. As far as I can decode from their numbering system, this is the fine thread version of the number you posted.

Yours is

NTK2R kc730

The one I bought is

NTF2R KC730

I guess I don't understand the "positive rake".



[urbanrifleman]

Speed is your friend with those. Crank it up!

I already thread at a minimum of about 200 RPM and I do tenon threads at 400. I'm not sure how much faster I can go.



[gunsandgunsmithing]

I already thread at a minimum of about 200 RPM and I do tenon threads at 400. I'm not sure how much faster I can go.

Try it on a piece of scrap. I bet the threads clean up when you get the speed/feed right. There are different grinds and materials that inserts are made of that dictate what the ideal speed is in a given material, with a given insert. They may not be practical for your application but I bet they will cut fine if you get it right.



[urbanrifleman]

The MSC number for a 1/2" shank holder for those inserts is 88228788.
If you want the same insert with a positive rake that would be a NTK2R MSC 55317449

I just spoke to the tech from MSC and she said the only difference between the NTK2r and the NTf2r is that the NTK has a chip breaker.



[WillyTP]

I see you already ordered from MSC, but here’s the SHARS TOOL version for considerably less money.

1/2" Shank RH TNSR 08-2V Notch Threading and Grooving Toolholder

www.shars.com



[jackieschmidt]

We use those style inserts for just about everything.

The tool holder sets it at the correct position. You should not be changing the angle of attack.

They like a lot of Surface Feet Per Minute and a rigid set up.

this one is for cutting 4 threads per inch.



[Sniperhandle]

I already thread at a minimum of about 200 RPM and I do tenon threads at 400. I'm not sure how much faster I can go.

Bradley, At the speeds you are threading, HSS is going to work much better for you, You can get these which I use from time to time on some Tenons like Mauser and Enfield which are fast threads. You can use these inserts which are HSS from Arthur Warner company.

Arthur Warner caters to the Gunsmith and these are pretty good, You can buy stouter holders too and these inserts will fit. But to keep it simple just buy the whole kit from Arthur Warner.

Kit #18 1/2 inch Threader NV

www.arwarnerco.com

TPMC 32 NV

www.arwarnerco.com

Threading

Threading

www.arwarnerco.com

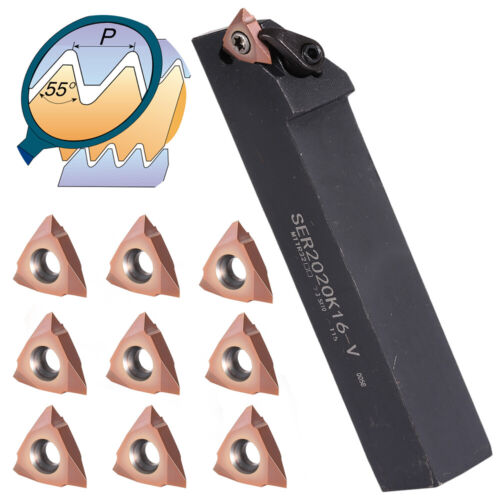

I also use this tool from Hartwana, This is a very stout tool and has the correct 55 degree inserts for mauser, But the 60 degree HSS inserts from Arthur Warner also fit this Hartwana Threading tool. And Hartwana sells 60 degree inserts also. The Hartwana stuff is carbide.

Lathe Thread Cutting Tool Vertical Indexable Thread Inserts For 55 Degree AG55 | eBay

Find many great new & used options and get the best deals for Lathe Thread Cutting Tool Vertical Indexable Thread Inserts For 55 Degree AG55 at the best online prices at eBay! Free shipping for many products!

www.ebay.com



[LVLAaron]

https://www.mscdirect.com/product/details/05765631



[urbanrifleman]

https://www.mscdirect.com/product/details/05765631

Out of curiosity why did you pick that one?



[urbanrifleman]

I see you already ordered from MSC, but here’s the SHARS TOOL version for considerably less money.

1/2" Shank RH TNSR 08-2V Notch Threading and Grooving Toolholder

www.shars.com

I already have that one. It cuts like crap. Completely worthless.



[LVLAaron]

Out of curiosity why did you pick that one?

Recommended by Gordy. Cuts a gorgeous thread, at whatever RPM you want. It's designed for "slow" speeds. You can thread at 20RPM and get a perfect finish.



[LVLAaron]

And if you want to get into it, they made pitch specific inserts in that same grade (BXC)



[DaveTooley]

I went full profile 15 years ago and will never go back to a 60 degree insert. Never could get the same finish.



[WillyTP]

I already have that one. It cuts like crap. Completely worthless.

Really, ok



[V35]

And if you want to get into it, they made pitch specific inserts in that same grade (BXC)

I use the pitch specific BXC, works really good.



[LVLAaron]

Really, ok

The holder is fine, I'm sure. It's something with the insert or speed/feed.



[Walt Krafft]

I just spoke to the tech from MSC and she said the only difference between the NTK2r and the NTf2r is that the NTK has a chip breaker.

A chip breaker changes the rake angle to a positive angle.
