AR Accurizing

[GenePoole]

If you've got a 0.006 gap to fill on your AR, you've got bigger problems.



[itchyTF]

For BCG tilt (I've read it's not critical for DI but more so for piston, don't know), I used a CTS Engineering Aktive Recoil buffer. Looks like he's not in business anymore. The downside of that one is you need to remove both takedown pins to disassemble the AR.
Apparently this one doesn't have that problem.



[LVLAaron]

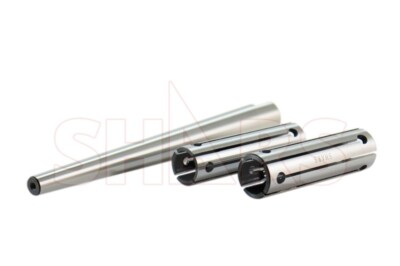

SHARS Precision Expanding Mandrel 1 - 1-1/4" NEW P} | eBay

Size Range Mandrel 1 - 1-1/4". Arbor Length 9. You may ask for freight cost before buying tools.

www.ebay.com

Going to try one of these for truing the action face.



[ELR LVR]

SHARS Precision Expanding Mandrel 1 - 1-1/4" NEW P} | eBay

Size Range Mandrel 1 - 1-1/4". Arbor Length 9. You may ask for freight cost before buying tools.

www.ebay.com

Going to try one of these for truing the action face.

Will you stick it through the raceway and then hold the tool to turn the action?
Never seen one
Looks Interesting



[LVLAaron]

Will you stick it through the raceway and then hold the tool to turn the action?
Never seen one
Looks Interesting

Yeah. The collet expands. Give it a little tappy tap and it'll be tight. The bar runs on centers and a lathe dog



[skeeljc]

I just used a piece of 1" TGP stock. One end in the chuck and a live center in the other end. The fit was tight enough that I did not need a lathe dog to drive it.



[VA_XTC_Shooter]

You can chuck a MIdwest URR in the lathe and just slide the upper receiver on.



[LVLAaron]

You can chuck a MIdwest URR in the lathe and just slide the upper receiver on.

Hmm. I have one. I'll chuck it up and see how it measures.



[VA_XTC_Shooter]

Hmm. I have one. I'll chuck it up and see how it measures.

really depends on upper bore diameter. I have 2 URRs. One is standard, the other I had to turn down the diameter to fit my tighter uppers. So it fits pretty snug.



[LVLAaron]

really depends on upper bore diameter. I have 2 URRs. One is standard, the other I had to turn down the diameter to fit my tighter uppers. So it fits pretty snug.

I mean, runout where the action face would be. On mine it's about 3 thou runout.



[tobnpr]

I don't bother with the lathe for the receiver face.
Shop-made mandrel and lapping compound, aluminum laps easily...



[Wolfdog91]

Hay just wanna thank everyone who's posting here , I'm an AR nut due to my budget and my love off being able to modify stuff on them without a gun Smith or lathe . Seem anytime I try and talk about these I usually just get told to buy a bolt gun but this post has been so helpful and insightful! Thank you all !



[LVLAaron]

Yeah, I like this.



[simo hayha]

Awesome thread guys, thanks.



[SKWERLZ]

Same. Especially the bolt/gas system. I've gathered some of the tolerances over the years from his videos. He avoids saying the specs but sometimes they slip out.

Same.



[SKWERLZ]

You can chuck a MIdwest URR in the lathe and just slide the upper receiver on.



[Sniperhandle]

All of a sudden it was like a light bulb came on!

Haha, That's pretty funny right there!



[jlshaw]

Talk to Bill Balda at LRRC. He's a long time service rifle shooter at a variety of distances. Ask him for advice and do what he says to do.



[boltfluter]

Awesome thread guys, thanks.

This. Just did a little work for my brother, to help him out with his first AR-15 rifle build. We are very "green" when it comes to the AR-15 world. Looks like I may need one for myself! Lol. Enjoy seeing and reading about all the neat fixturing you guys are coming up with .
Paul



[jelenko]

LLRC

Do you have a contact or website?
