sorting by empty case weight?
- Thread starter JeffG
- Start date
Wild Bill IV
Gold $$ Contributor
I agree!!! Getting yourself worked up before a shot is not like shooting at the range!!!
However, if you do your scouting early, you don't have to stalk and/or flush your trophy!!! Look for the opens and beanfield shoot (sniper) your prey!!!! I have several nice racks in the house!!! You have to work long before the season to be able to take down the big ones with ONE COLD BARREL SHOT!!!!
I see your point for out of state hunts!!! They are tough!!! Getting in shape and practicing a lot is essential for filling that type of tag!!!
Shooting the sage rats with that hunting rifle in the off season can aid in reducing the buck fever heartbeat and tune the shooter to the full capability of the rifle/loads (learning the minutes of deer)!!! It also helps the shooter learn windage, elevation, and ranging corrections (firing solutions) for the rifle!!
Plus, a hunter needs to learn to control the heartbeat rate!!! I work on that while watching TV and playing with the finger clamp monitor!!! Learn to get the rate down to 40 beats/min!!! Go on a low sodium diet (1200-1600mg of sodium/day) about a month before the season will allow the hunter to control his heartbeat by lowering the blood pressure!!!! Mine is 120/85 at age 69!!!
I'm an old BEANFIELD SHOOTER with tuned rifles and loads that shoot less than 0.5MOA!!! That once in a lifetime bull is going down at 400!!! That heart is about 4 inches, with the rifle capable of shooting 2in at 400, that leaves twice the human error!!! HE GOING DOWN!!! The rapid heart beat (buck fever) is easier to control in my older, and more experience body now!!!
Last edited:
Thanks for taking the time to share real data. My “assumption” has been that weight variation could be attributed to differences in the case head or other areas that would not impact volume.
Your data actually shows a pretty good correlation between weight and internal volume. R-squared is interpreted as the amount of variation in the output that can be explained by variation n the input. Here (for 223 ) your data suggests that over 45% of the variation in volume can be attributed to case weight variation… statistically, that is pretty solid. However, the real question is, “is the observed variation in case capacity practically significant?”
CharlieNC
Gold $$ Contributor
If you take the time to weigh the brass to at least assure there are no outliers, then you will know the degree of variability as well. Since you have then invested 95% of the time required, why would you not segregate them if there is >1gr variability. Especially if you are a .02gr powder charge accuracy type of guy.
222Jim
Silver $$ Contributor
Is the observed variation practically significant? Good question @cdgaydos
My simple answer is "not really". The basis for that is how much of the measured velocity variation would be based on case weights IF case capacities perfectly correlated with case weights, i.e. the slope of the regression line on those charts has an R-Squared of 1.0. How I worked out the math was:
- I took the average case weights +/- 2 stand deviations, which covers 95% of expected results, and
- Used the slope of the regression line to estimate the implied change in case capacities, then

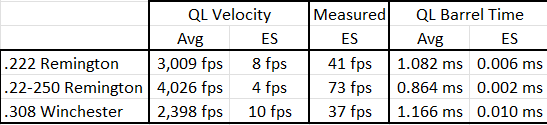

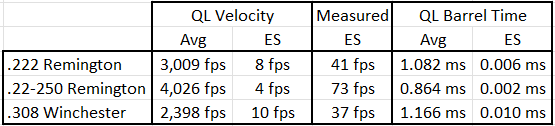

- Determined the change in velocity (and barrel time) using my tuned version of QuickLoad (QL):
Given how small the velocity impact is between the extremes of +2 standard deviations to -2 standard deviations, I couldn't justify weight sorting cases.
I threw in barrel time because many people use it too......the calculated change in barrel time is also negligible.
Jim
Attachments
Last edited:
When do you weigh cases? Should it be done on new brass or can it be done on fired brass?
ELR LVR
Silver $$ Contributor
"Don't practice missing"
---I like that
That goes along with 2 of my motto's
"Aim small, and DON'T miss"
"Dont practice until you finally get it right,... practice until you can no longer get it wrong"
------------------------------------------------
There is a lot that goes into the psychology of the Human Brain
Power of suggestion is very powerful, Psyching yourself up to do good for instance ...works
The idea of allowing yourself to miss small, is still missing
You may think I am being hard, No, I am hard on myself
I am demanding of myself
And I know the results of that
---------------------------------------------------
a Self induced prophecy of "missing" will be the result of thinking
"Aim small miss small"
Instead keep telling yourself
"Aim small, and DON'T miss"
-----------------------------------------------------
It's kind of like the difference of saying to yourself
"I'll try" vs. "I will"
Last edited:
222Jim
Silver $$ Contributor
I only weigh cases as part of the process of calculating their capacity, and that's best done once they have been fired and have grown to fit your rifle's chamber.
ELR LVR
Silver $$ Contributor
BTW, this is how I now sort my brass
It doesn't matter what it weighs, or how far apart they are from each other
This lot of brass was 22 BR.... Approx 127 to 132 grains weight
all up to 5 grains apart, but puts them all into the same hole (all that matters)
-----------------
As long as it puts them all into the same hole
I don't care
When I test now, the brass that shot like this....gets lumped together with the brass that did exactly the same thing, regardless of weight, brand, length, neck thickness etc
Makes more sense to me to sort them according to how they actually perform on target
than how much Juju I massaged into them on the reloading bench
It doesn't matter what it weighs, or how far apart they are from each other
This lot of brass was 22 BR.... Approx 127 to 132 grains weight
all up to 5 grains apart, but puts them all into the same hole (all that matters)
-----------------
As long as it puts them all into the same hole
I don't care
When I test now, the brass that shot like this....gets lumped together with the brass that did exactly the same thing, regardless of weight, brand, length, neck thickness etc
Makes more sense to me to sort them according to how they actually perform on target
than how much Juju I massaged into them on the reloading bench
Attachments
ELR LVR
Silver $$ Contributor
Why?
Because I have also weight sorted brass to all be exactly the same
yet shoot like this
which for me, is unacceptable unless it's a hunting, varmint or factory rifle
then it's pretty dang decent, but not really something to boast about
so why weight sort brass if it wont shoot better than this?
So yeah, I sort according to test results instead of weight
It used to make me "Feel" better weighing them, until I realized some would still shoot different for some reason which cannot be explained. While others that varied, would still hold within the group.
So now I think it's about as useful of an exercise as cleaning primer pockets
(I will cull out any brass that are extreme outliers though)
For the most part I will sort it into 3 groups, Light, Medium, Heavy
Because I have also weight sorted brass to all be exactly the same
yet shoot like this
which for me, is unacceptable unless it's a hunting, varmint or factory rifle
then it's pretty dang decent, but not really something to boast about
so why weight sort brass if it wont shoot better than this?
So yeah, I sort according to test results instead of weight
It used to make me "Feel" better weighing them, until I realized some would still shoot different for some reason which cannot be explained. While others that varied, would still hold within the group.
So now I think it's about as useful of an exercise as cleaning primer pockets
(I will cull out any brass that are extreme outliers though)
For the most part I will sort it into 3 groups, Light, Medium, Heavy
Attachments
Last edited:
As soon as a guy thinks he has this figured out, something will change.
Some days I see a correlation between weight and speed then I don’t and then it’s back again.
Today I shot some lighter weight brass with a load from last weekend and not only did they run 40 fps slower they also impacted a minute low on the target.
It makes my head hurt. Lol
Jim
Some days I see a correlation between weight and speed then I don’t and then it’s back again.
Today I shot some lighter weight brass with a load from last weekend and not only did they run 40 fps slower they also impacted a minute low on the target.
It makes my head hurt. Lol
Jim
I’ve been sorting by weight, H2O volume and now I’m using the Bison Armory Volume Gauge to periodically check my case capacity looking for an occasional outlier
There’s a slight learning curve to get consistent results with this tool but once you figure it out it’s the quickest and most reliable method I’ve tried so far
There’s a slight learning curve to get consistent results with this tool but once you figure it out it’s the quickest and most reliable method I’ve tried so far
222Jim
Silver $$ Contributor
Nice! Results look good and it's got to be faster than the standard "weigh, add water, weigh again" that most of us use.
Sadly I went to their website and saw they had to increase their price from $199 to $299. Why? Their electronics are imported from China and now include a hefty tariff.
Worse still, I guess if I order it I'll pay an additional tariff because I'd be importing it into Canada (unless it's tariff free under USMCA).Mark , you have the best toys by far …
So my question is , in a 100 box of Lapua 6br brass how many outliers do you usually find ?
Last edited:
Jim, I like nice toys and don't mind the $$ IF I can shrink my agg just a little bit
I ran 250 BRA cases getting ready for the Rendezvous and haven't found any outliers that I had to scrap but I take my brass prep to OCD level X 10 and I think that might help with consistency
I ran 250 BRA cases getting ready for the Rendezvous and haven't found any outliers that I had to scrap but I take my brass prep to OCD level X 10 and I think that might help with consistency
My primary interest is ELR and when TOFs are several seconds, differences in velocity really show up.
I set up the Bison case volume tool with a pneumatic drive and used a 21st century plug turned to match the bottom of a shell holder. I'm satisfied with the Bison tool, but as mentioned above, there is a learning curve and there are limitations.
The test results below are a bad case of TMI. The cases are 33XC that had been fired once in a seasoned barrel. New cases have volume differences that are relics from the manufacturing process. Fired cases can be much more uniform in volume if the pressure histories are the same. That excludes brass used for pressure ladders or the early stages of barrel break in. Some differences in pressure history can be covered up with sizing, but all of the cases must need sizing and none of them can have significantly more spring back than the others.
I used the 5 heaviest and 5 lightest cases in the lot. Each case volume was tested 10 times to estimate the repeatability of the measurement. The case number is the horizontal axis, the test count are the series. The Bison tool is designed for much smaller cases. I used a steel dowel with 52 grains of volume to bring the case volume down into a range nearer what the tool was designed for. The tool has a warmup period. My thoughts are both the extra volume and steel dowel extended that.
There is a lot of noise, but the case volume tracks the case weight to a significant degree.

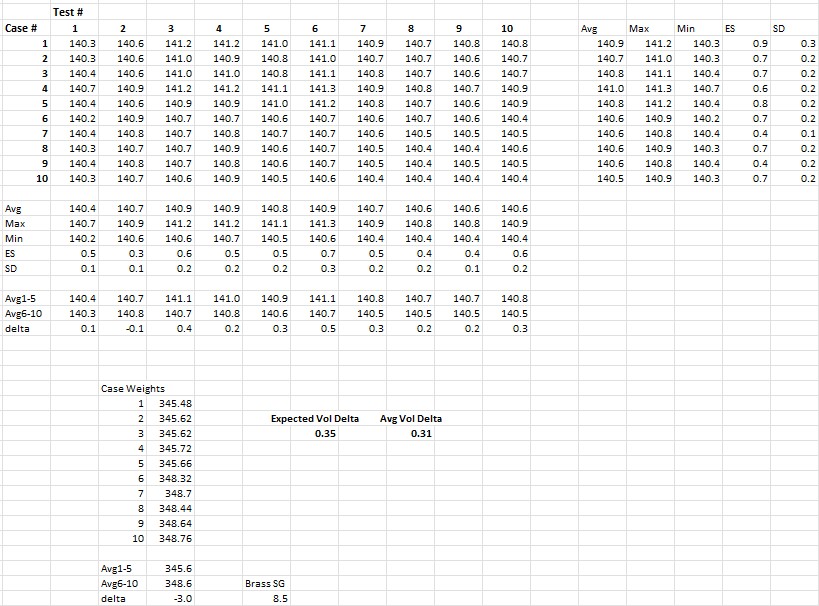

This is the raw data.
If the differences were entirely the result of things above the extractor groove, the weight and volume would be related by the specific gravity of cartridge brass. That's 8.5, giving a volume difference of 0.35 grains of water for a weight difference of 3 grains. Comparing the weight and volume differences between the 5 heaviest and 5 lightest cases and averaging through the noise, the measured volume estimate comes out to 0.31. That's not a bad match. The rest of the story is the problem is on the volume measurement side of the comparison. The difference in volume measurements on an individual case is larger than the difference between cases. The results are pretty consistent for 10 cases but the temperature drift would catch up to you if you tried to measure 100 cases this large.
That 0.3 grains of water capacity works out to 3 fps in QL. If the ES is estimated at 20 fps from 4X an SD of 5 fps and we eliminate that 3 fps, the new ES isn't 17. A better estimate would be:
(20^2-3^2)^0.5 =19.8 fps
So no, you won't see it.
This is an extreme example. A heavy, high volume case from boutique manufacturer in a set that was weight sorted from a larger batch.
I can sort brass on weight at a sustained rate of ~5 per minute. With new brass, checking the volume isn't really an option. Even using water and fired brass, the volume estimates vary by almost half a grain on an individual case this large. Sorting by weight isn't a bad option.
A trick for sorting brass by weight quickly is to try a few and find one with a median value. Zero the scale with that case and set it aside to check drift as you go. I have a strip of masking tape in front of the scale marked -2, -1, 0, 1, 2. They're separated by enough to fit 10 cases between them. Drop a case on the scale and set the case down on the bench at the appropriate point on the tape. No math, no thinking, fewer errors. 100 cases in about 20 minutes. Do it the first time and be done with it.
The color of the box the brass is shipped in won't save you. My first box of 300PRC that came in a blue box only had 99 cases in it. The first 10 cases I measured were 7 grains apart. Hornady has been running 2.5-3 grains. ADG is below 2.
I set up the Bison case volume tool with a pneumatic drive and used a 21st century plug turned to match the bottom of a shell holder. I'm satisfied with the Bison tool, but as mentioned above, there is a learning curve and there are limitations.
The test results below are a bad case of TMI. The cases are 33XC that had been fired once in a seasoned barrel. New cases have volume differences that are relics from the manufacturing process. Fired cases can be much more uniform in volume if the pressure histories are the same. That excludes brass used for pressure ladders or the early stages of barrel break in. Some differences in pressure history can be covered up with sizing, but all of the cases must need sizing and none of them can have significantly more spring back than the others.
I used the 5 heaviest and 5 lightest cases in the lot. Each case volume was tested 10 times to estimate the repeatability of the measurement. The case number is the horizontal axis, the test count are the series. The Bison tool is designed for much smaller cases. I used a steel dowel with 52 grains of volume to bring the case volume down into a range nearer what the tool was designed for. The tool has a warmup period. My thoughts are both the extra volume and steel dowel extended that.
There is a lot of noise, but the case volume tracks the case weight to a significant degree.
This is the raw data.
If the differences were entirely the result of things above the extractor groove, the weight and volume would be related by the specific gravity of cartridge brass. That's 8.5, giving a volume difference of 0.35 grains of water for a weight difference of 3 grains. Comparing the weight and volume differences between the 5 heaviest and 5 lightest cases and averaging through the noise, the measured volume estimate comes out to 0.31. That's not a bad match. The rest of the story is the problem is on the volume measurement side of the comparison. The difference in volume measurements on an individual case is larger than the difference between cases. The results are pretty consistent for 10 cases but the temperature drift would catch up to you if you tried to measure 100 cases this large.
That 0.3 grains of water capacity works out to 3 fps in QL. If the ES is estimated at 20 fps from 4X an SD of 5 fps and we eliminate that 3 fps, the new ES isn't 17. A better estimate would be:
(20^2-3^2)^0.5 =19.8 fps
So no, you won't see it.
This is an extreme example. A heavy, high volume case from boutique manufacturer in a set that was weight sorted from a larger batch.
I can sort brass on weight at a sustained rate of ~5 per minute. With new brass, checking the volume isn't really an option. Even using water and fired brass, the volume estimates vary by almost half a grain on an individual case this large. Sorting by weight isn't a bad option.
A trick for sorting brass by weight quickly is to try a few and find one with a median value. Zero the scale with that case and set it aside to check drift as you go. I have a strip of masking tape in front of the scale marked -2, -1, 0, 1, 2. They're separated by enough to fit 10 cases between them. Drop a case on the scale and set the case down on the bench at the appropriate point on the tape. No math, no thinking, fewer errors. 100 cases in about 20 minutes. Do it the first time and be done with it.
The color of the box the brass is shipped in won't save you. My first box of 300PRC that came in a blue box only had 99 cases in it. The first 10 cases I measured were 7 grains apart. Hornady has been running 2.5-3 grains. ADG is below 2.

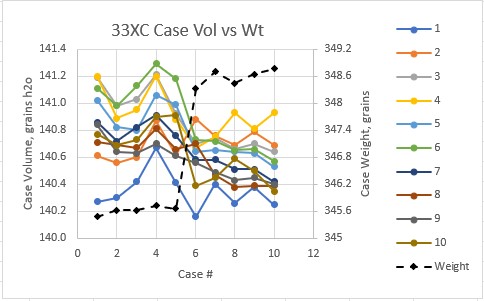

Only the dashed black case weight series uses the secondary, case weight, axis. The rest use the primary, volume axis. The step from the 5 lightest to the 5 heaviest is obvious.
Top to bottom along a given case number is the same case being measured 10X. It shows the temperature drift.
Left to right are strings of case measurements with different cases. It shows the case to case variation in volume.
Cases 1 through 10 were measured.
Then they were measured again until all of them had been measured 10X to see where the temperature drift stopped.
Top to bottom along a given case number is the same case being measured 10X. It shows the temperature drift.
Left to right are strings of case measurements with different cases. It shows the case to case variation in volume.
Cases 1 through 10 were measured.
Then they were measured again until all of them had been measured 10X to see where the temperature drift stopped.
6BRA
Gold $$ Contributor
From my use with this, so far 2 things effect the volumizer.
Your pull on the press handle must be very consistent..but even more so, you must be in a pressure stable room. If the AC or Heat is running it seems to have variance when it kicks on/off.
I may have come to the conclusion if you are able to reload to tight tolerances, the Garmin chrono is a better culling tool.
I agree, that's why I use this tool with my Prazi Press which is super smooth, I also wear a thin cotton glove to make sure I don't affect the temp by handling cases and I have a small fan blowing ambient air over cases I'm measuring.
As far as Garmin is concerned IMO it takes the entire loading process into equation like brass prep, neck tension, powder charge and primer where the Bison Gauge is measuring just the case volume allowing you to eliminate one inconsistency at a time, I weigh primers I use AMP press to eliminate neck tension variance and test neck tension with several different bushings during load development trying to leave no stone unturned
As far as Garmin is concerned IMO it takes the entire loading process into equation like brass prep, neck tension, powder charge and primer where the Bison Gauge is measuring just the case volume allowing you to eliminate one inconsistency at a time, I weigh primers I use AMP press to eliminate neck tension variance and test neck tension with several different bushings during load development trying to leave no stone unturned
