Tactical/Target Rifle w/WOOD

[Shutstr8r]

ROUND 4 - PRS/Competition Rig

Origin SA
Competition Bolt Knob
Proof Comp Contour 223, 26" threaded 5/8x24
M5 Bottom Metal
Triggertech Diamond, Flat

Custom Curly Maple - Adjustable,
Pillar and epoxy bedded

Freebore has the 77gr SMK at 2.390 to touch, and the 80.5gr Bergers at 2.520" while keeping the bearing surface above the neck shoulder junction.

Should be great for PRS tac class with 75 ELDM or 77 SMKs, then you could run the 80.5 or 85.5 Bergers in Open division.

Stock is almost done, I should be able to shoot some groups Friday.

Black with subtle fade to silver to compliment the black action and stainless barrel.

View attachment 1613157
View attachment 1613158

That’s the one right there



[Shutstr8r]

ROUND 5 - Next Batch of Hunters

Knocked out a few more hunting rifles with some additional features: Arca, Recessed Pic Rail, QD Flush Cups, etc.

18" 6.5 PRC
View attachment 1659064
View attachment 1659065
View attachment 1659066

18" 308 Win
View attachment 1659067

I take that back. The top one but with adjustable cheek piece

—Darrell



[Shutstr8r]

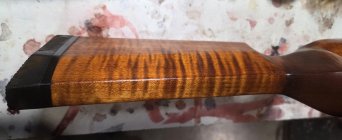

Walnut sanded to 800 with tung oil. A few more levels to go before top coating.

View attachment 1683628

Oh my. Now that’s some wood porn right there.



[AMG04]

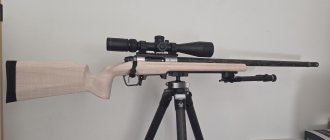

USPS didn't make me wait until Monday, and the SRS Hunter came in this afternoon. Chalk that up as a win...

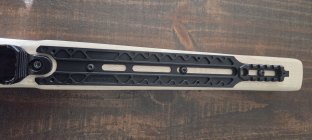

The arca rail is flush with the front of the bottom metal all the way to the magwell, so nothing snags.


I'll start adding color tonight.



[AMG04]

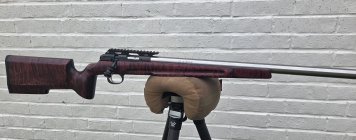

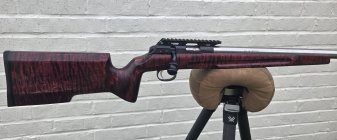

Played around with a bunch of colors over the weekend, and this is where I ended up. Pop of color for my match rifle, but not so crazy it stands out when hunting.



[AMG04]

A few more while it's mocked up.



[AMG04]

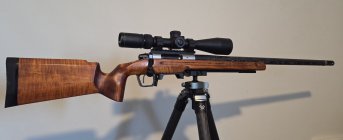

Wrapping up the CZ project



[AMG04]

I wanted to experiment with an extra blank for this season's NRL Hunter rifle.

Did a rough carve on the grip area, then left it (no shaping or sanding). It left an almost tree bark look. Feels great in the hand, obviously not as refined as checkering, but serves the same purpose.

Reminds me of my old maple baseball bats smothered in pine tar.



[Infrequent Shooter]

I wanted to experiment with an extra blank for this season's NRL Hunter rifle.

Did a rough carve on the grip area, then left it (no shaping or sanding). It left an almost tree bark look. Feels great in the hand, obviously not as refined as checkering, but serves the same purpose.

Reminds me of my old maple baseball bats smothered in pine tar.

View attachment 1725866

looks real nice. very useable.



[AMG04]

Final weight for NRL Hunter - Open Light
11lbs 14.8oz w/suppressor



[troupe]

Are you ready for Tikka's yet ?



[4xforfun]

LOVE WOOD!!

Chambered for the fallowing:

22BR
6.5 X 47L
6.5 WSSM
300WSM
300WBY
338 EDGE

Looking for a Lapua bolt for a 33XC or 37XC



[AMG04]

Are you ready for Tikka's yet ?

Im pretty sure I have an LRH in hand right now for a Tikka.



[jxb]

I'd love to drop my LH T3x TACT A1 6.5 creed into wood.



[troupe]

Im pretty sure I have an LRH in hand right now for a Tikka.

See what can be started ! Watch out world.



[AMG04]

Practicing with some new Christmas presents...

Scrap quilted maple



[Bc'z]

Practicing with some new Christmas presents...

Scrap quilted maple
View attachment 1728796

I have been wanting to try checkering.
Do you have any pointers?



[AMG04]

Those are the first lines I've scratched, so I'm far from knowledgeable.

First, thing... just start. I learned more in 10 minutes of cutting than I did from months of reading and watching videos. Someone like yourself will be able to observe what's going on and adjust quickly.

My first mistake was making the master lines too deep. Basic geometry, as you cut deeper with a 60° the line gets wider. That made it much harder for the spacing cutter to track properly, and also made it hard to cut with the tool perpendicular to the wood.

Lesson learned. All lines cut with a very fine first pass, then come back and chase them out in a 2nd or even 3rd pass.



[Bc'z]

Those are the first lines I've scratched, so I'm far from knowledgeable.

First, thing... just start. I learned more in 10 minutes of cutting than I did from months of reading and watching videos. Someone like yourself will be able to observe what's going on and adjust quickly.

My first mistake was making the master lines too deep. Basic geometry, as you cut deeper with a 60° the line gets wider. That made it much harder for the spacing cutter to track properly, and also made it hard to cut with the tool perpendicular to the wood.

Lesson learned. All lines cut with a very fine first pass, then come back and chase them out in a 2nd or even 3rd pass.

I've been watching a lot of Jesse Kaufman videos he makes it look super easy. Lol



[AMG04]

Tonight's practice was a simple point pattern and trying not to blow out the borders. Adding and extending rows to add points and keep them balanced.

These have been cut in with the 60°. The 75° and 90° ill save for tomorrow.
