Rem 700 not extracting??

[MRogersII]

Good afternoon, All. Looking for some guidance on what is probably obvious to you guys. So, I have a long action Rem 700 that had a mag bolt face. Bought a new bolt body with standard bolt face. I had a new 6.5-284 barrel installed. Switched out the firing pin assembly, and plunger from the original bolt to the new standard bolt body. In the pic, the left bolt face is the mag. The right bolt face us the new standard with the plunger installed. But the new bolt does not extract the cases?? What am I doing wrong here?
Any help would be much appreciated, thank you.
Michael



[Coyotefurharvester]

Did you install an extractor in the new bolt body(if it didn't come with one) I can't see clearly the pic? The mag bolt extractor is riveted in place?



[MRogersII]

First of all, thank you for responding. I assume this is the extractor that you're referring to on the mag bolt? I've not done much work with 700 bolts.



[MRogersII]

I was able to drive out the retaining pin that held the mag extractor in. Can this be reused in the new bolt? I don't see a hole in the perimeter of the standard bolt where a new one would be installed.



[MRogersII]

Mag extractor removed



[MRogersII]

I may have answered my own question. There is a recess in the standard bolt face that looks to be where a new extractor would go, but no hole for a retaining pin. My guess is that the standard bolt uses some type of snap-in extractor.



[troupe]

You did well, study it and you figured it out. Great Job.



[MRogersII]

Obvious question, can I simply file the rivet pin off of the old one and install it in the new bolt?



[troupe]

Some are snap in and some are riveted. Plus the extractor is most likely different for the mag compared to the standard rim extractor.



[MRogersII]

It looks as though, with the retaining pin filed off, it would snap into the groove of the new bolt.



[Walt Krafft]

No. They take similar but not the same extractor. Unfortunately, both are now very hard to get. Time to find a gunsmith that knows what he is doing.



[Bill K]

Or maybe have Carlsbad or someone install a Sako type.



[Coyotefurharvester]

^^^^^ there are better than factory extractors, have bolt bushed also.



[MRogersII]

Thank you all for the guidance, and for taking the time to respond. Much appreciated. Have a very excellent New Year.

Michael



[troupe]

Carlsbad is a great choice. Does not get you to the range today, but will make it 100% better in the long run and well worth the asking price.



[paperpuncher]

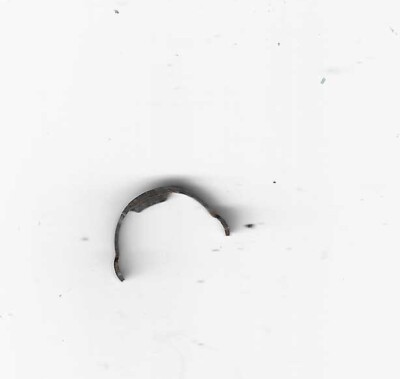

This is what you will need
Extractor



[MRogersII]

Once again, guys, thank you much for all the help. God bless you all and I wish you and all of yours a safe and happy New Year.



[WSnyder]

Once again, guys, thank you much for all the help.

They are a little tricky to install without bending and ruining them. Hard to describe but you rotate them in starting with the cutout in the rim in the bolt. I ease them in holding with a small pair of needle nose pliers sometimes using a sharp pick to help guide them.


BTW PTG had them in stock awhile back for something like $15 $18.35. I called to verify they were in stock. Took about 3 weeks after placing the order to arrive though.

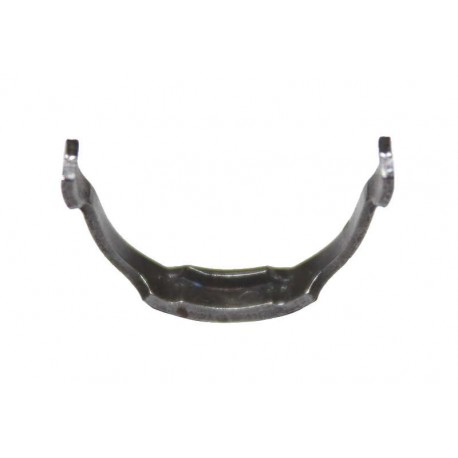

Remington Extractor (Bare)-REMEXTRACTOR

www.pacifictoolandgauge.com



[6ShotsOr5?]

There are some new and some used ones currently listed on EBay too. Example:

REMINGTON 700 7400 7600 7 30-06 308 RIVETLESS HEAVY EXTRACTOR NOS OEM | eBay

It is specifically designed for theRemington 700, 7400, 7600, 7 30-06, and 308 calibers, making it a perfect fit for your gun. The black steel material ensures durability and longevity, allowing you to extract your bullets without any hassle.

www.ebay.com



[kendog]

In your first pictures it looks as though the .473 spring type extractor is not fully rotated into position. Remove the ejector, properly index the extractor , then re install the ejector. I use a bamboo chopstick sharpened in a pencil sharpener. No way to scratch the bolt that way. If you slip with metal tools you can knacker the bolt face.
