DIY FOAM CUTTER

[rdb8847]

Anyone have a good DIY foam cutter setup that they can share? I’ve always used an electric knife or razor. Always ends up looking like a dog chewed on it.



[Walt Krafft]

I was told to freeze the foam first before using the eknife.



[coldboreshot]

This works great, especially in tight corners.



[gunsandgunsmithing]

You can buy hot wire foam cutters or find plans for making one online. I've not tried one yet but have considered it for some time. May have to give it a try.

https://www.amazon.com/s?k=hot+wire+foam+cutter&adgrpid=1335907197424917&hvadid=83494586646936&hvbmt=be&hvdev=c&hvlocphy=85395&hvnetw=o&hvqmt=e&hvtargid=kwd-83494554751442%3Aloc-190&hydadcr=24634_13769808&mcid=595ad0b981bf32819037acea9ccbe62b&msclkid=f2cbfca5d50f18cc771a94015bda35d4&tag=mh0b-20&ref=pd_sl_694hu2x4vn_e&tag=accuratescom-20&tag=accuratescom-20



[jwv2001]

I think he's talking about polyethylene foam, not polystyrene foam. All I've ever seen used is like an electric carving knife with the reciprocating blades. It's a specialized tool.

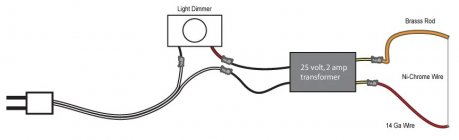

I've made my own for cutting styrofoam wings for R/C airplanes with nichrome wire using a battery charger for power.



[Fire Dog]

I think he's talking about polyethylene foam, not polystyrene foam. All I've ever seen used is like an electric carving knife with the reciprocating blades. It's a specialized tool.
I've made my own for cutting styrofoam wings for R/C airplanes with nichrome wire using a battery charger for power.

The reciprocating blades of an electric carving knife have always been my “go to” as I get a smooth cut even for curves or into corners. Just go carefully and keep knife vertical and not force the blades through the foam.
I use a white art pen to mark out the shape I plan to cut and if you are cutting the “Pluck” type foam {I hate it and have replaced it in several cases but it took a long time to find a specialist “Rubber” store that had “Gun Case” rated foam = $$} Not all foam is the same and some of the lesser stuff breaks down over time into crumbly bits…
Half cut small blocks can be glued in with contact adhesive to keep then in place and not fold down when putting your gun into and out of the case.
For those advocating or thinking about using a Hot Wire I would advise that you wear breathing protection as the fumes are toxic.. A hot wire is really only good for exterior cuts and would be a pain to dissemble and put back through for an interior cut.
The reciprocating knife will easily make a plunge cut and away you go and can be had from Wally Mart or Amazon for $20-40 depending on quality… Mine cost me about $28 for WM.. No shipping cost.



[Fast14riot]

An electric fillet knife works better than an electric carving knife. Fillet knives have plain edges instead of serrated. Keep it very sharp.



[Fire Dog]

An electric fillet knife works better than an electric carving knife. Fillet knives have plain edges instead of serrated. Keep it very sharp.

I agree, just did not see any for sale at the time I bought the carving knife or I would have gone for one of those… Perhaps next time as they are cheap enough…
They will make cutting curves and corners even easier.



[BuffaloBill]

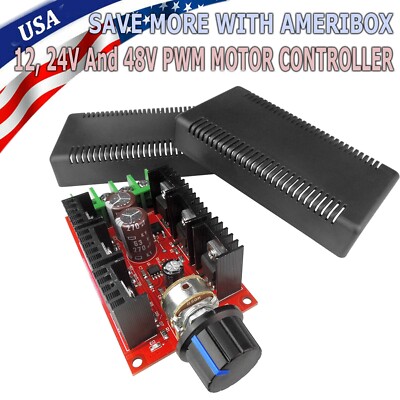

Here’s one I made maybe 10yrs ago. Used 28ga nichrome wire, an old laptop power supply, and a FET- based PWM controller (eBay). The rubber hose was an easy way to extend the PWM controller’s potentiometer shaft through the frame. I adjust this pot for a moderate glow in the wire.

The templates made from paneling work well as a guide to cut reasonably straight pockets. I just lay them on the foam, passing the wire through the opening, etc. If you load that case full of pistols it get’s plenty heavy to carry around…..

The piece of thin-walled tubing laying on the foam was used in a drill press to make the magazine cutouts. I sharpened one end of the tube and used another piece of paneling with three overlapping holes as a template (that didn’t get in the picture).
