SELLING Winchester Model 1885 High Wall Barrel .22 Short Caliber Winder Musket Barrel

drrjc

Silver $$ Contributor
Original Winchester Model 1885 High Wall Barrel marked 22 SHORT on the Left Side of the Chamber and 22 RF on the Lower Right Side ahead of the Chamber. It is Round, (approximately) 28 Inches Long, Tapered, with Front Sight Ramped Base, and Dovetail Cut for Forearm Mounting Stud. Left side is marked in two lines: MANUFACTURED BY THE WINCHESTER REPEATING ARMS CO. / NEW HAVEN CONN, U.S.A. PATENTED OCTOBER 7, 1879. Barrel Tenon is (approximately) 0.935” Diameter x 16 t.p.i. and (approximately) 0.85” Long to fit the Large, High Wall Receiver; weight is (approximately) 3 lbs. 15 oz. The U-shaped Extractor Cut fits an 1885 .22 Extractor in our test-fit The chamber accepts .22 Long Cartridges. It looks like a Later Model Winder Musket Barrel for a Coil Mainspring Action with no dovetail cut for the leaf mainspring base. Two drilled and tapped holes on the left side, with one of them partly covering the “T” in 22 SHORT, look to be a sight or scope mount. No rear sight dovetail or screw holes also means it may be from a Musket equipped with a Lyman Receiver Sight. Please see photos to check these descriptions. The bore and rifling are in splendid and nearly like new condition. Aside from the drilled & tapped side holes, the finish condition and bluing are in very good condition for age. A Winchester Cartouche with a P over W over _I_ inside an Oval appears on top of the Chamber. Please ask any questions or set up a phone call by Personal Message/PM before bidding. Payment is by Money Order, Personal Check (2-3 days clearance), or Bank (certified) Check. We are not a dealer, and cannot handle credit cards or electronic payments. Shipping + Insurance are Included. No-installation, No-fire returns OK within 3-days after delivery – minus our actual shipping cost. Item is subject to prior sale. Price: $149.00 Shipped and Insured.

Last edited:

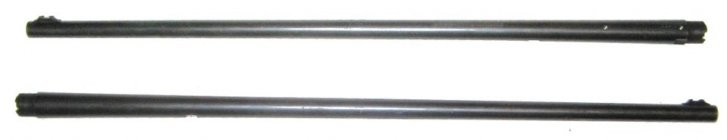

Original Winchester Model 1885 High Wall Barrel marked 22 SHORT on the Left Side of the Chamber and 22 RF on the Lower Right Side ahead of the Chamber. It is Round, (approximately) 28 Inches Long, Tapered, Integral (dovetail cut) Front Sight Ramped Base, and Dovetail Cut for Forearm Mounting Stud on the Bottom. Left side is marked in two lines: MANUFACTURED BY THE WINCHESTER REPEATING ARMS CO. / NEW HAVEN CONN, U.S.A. PATENTED OCTOBER 7, 1879. Barrel Tenon is (approximately) 0.935” Diameter x 16 t.p.i. and (approximately) 0.85” Long to fit the Large, High Wall Receiver; weight is (approximately) 3 lbs. 15 oz. The U-shaped Extractor Cut fits an 1885 .22 Extractor in our test-fit. We believe it’s a Winder Musket Barrel, likely a later model, because there is no dovetail cut for the leaf mainspring base – meaning it’s for a Model 1885 with a Coil Mainspring. We cannot say whether it fits a Takedown Model. Two drilled and tapped holes on the left side, with one of them partly covering the “T” in 22 SHORT, look to be a sight or scope mount. Lack of a top sight-mount dovetail or screw holes also means it may be from a Musket equipped with a Lyman Receiver Sight. Please see photos to check these descriptions. The bore and rifling are in splendid and nearly like new condition. Aside from the drilled & tapped side holes, the finish condition and bluing are in very good condition for age. A Winchester Cartouche with a P over W over _I_ inside an Oval appears on top of the Chamber. Please ask any questions or set up a phone call by Personal Message/PM before bidding. Payment is by Money Order, Personal Check (2-3 days clearance), or Bank (certified) Check. We are not a dealer, and cannot handle credit cards or electronic payments. Shipping + Insurance are Included. No-installation, No-fire returns OK within 3-days after delivery – minus our actual shipping cost. Item is subject to prior sale. Price: $175.00 Shipped and Insured.
View attachment 1643518View attachment 1643519View attachment 1643520View attachment 1643521View attachment 1643522
Did the .22 Short and the .22 LR have different barrel twist rates~!
