Intrepid indicator

[dnellans]

Ask and you shall receive:



[INTJ]

The Mity with a 1.5" stylus might be the best of both worlds. They're just fatiguing to read because the dial is small.

I have both the Mitotuyo and the Interapid . One set at home and one at work. I like the Interapid better.

I think @butchlambert likes the Mitituyo better.

I wish someone made a tenths indicator with a 1" dial and a 3.2" stylus.



[LVLAaron]

The Mity has been great for everything except 223. I have to resort to the grizzly for those.



[INTJ]

I think a lot of different tools and methods work. I have come to really like the Interapid, but there are lots of ways.



[ridgeway]

Ask and you shall receive:

Not looking to dis what you are doing, but that is not a valid test. Each stylus is at a different angle. DTI need set at a certain angle to minimize cosine error. Cosine error is real and not many realize it. Measuring with a DTI to resolve a dimension is tricky. 99.9% of the time they get used to indicate to obtain a zero condition(not measuring with it). The indicators that are showing more run out is most likely cosine error.



[Rockchuck]

Isn't easy to damage the indicator when you change out the stems??



[Rockchuck]

I think I read somewhere on the mitutoyo web site that its reads best at 12 degrees? I think



[ridgeway]

I think I read somewhere on the mitutoyo web site that its reads best at 12 degrees? I think

Something like that. If measuring with it, I'd check it with a known standard to make sure it resolves correctly. We don't really measure with a DTI.



[X Count]

Do the numbers on a mitutoyo 513-401-10E fitted with a long indicator. They are 1 micron with a 11.2mm contact point and have a large face.



[hoz53]

Ask and you shall receive:

i just wanna get the warning sign.



[INTJ]

Isn't easy to damage the indicator when you change out the stems??

Not really. I change them out all the time. Now what can throw you for a loop is if the tip comes a little loose. Your readings will be all over the place



[LVLAaron]

i just wanna get the warning sign.

WARNING Stickers MKI. - Etsy

This Tools & Equipment item by AvEwerkz has 1852 favorites from Etsy shoppers. Ships from Canada. Listed on Aug 23, 2024

www.etsy.com



[WSnyder]

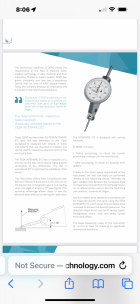

I think I read somewhere on the mitutoyo web site that its reads best at 12 degrees? I think

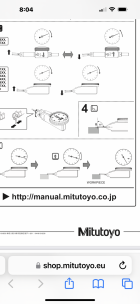

Mitutoyo 0°/90°
Interapid 12°/78°
We really aren’t measuring anything to a specific dimension in this application so the angle wouldn’t be critical.



[xr650rRider]

Joe Pie on cosine error



[LVLAaron]

I got mine today... It is as advertised by Dusty. It's like a fine watch. It's got a pretty stout spring for the stylus as well. I'm excited to put it to use... Which will have to be next week once this zero degrees BS passes by.



[hoz53]

WARNING Stickers MKI. - Etsy

This Tools & Equipment item by AvEwerkz has 1852 favorites from Etsy shoppers. Ships from Canada. Listed on Aug 23, 2024

www.etsy.com

Thanks for the info LVL- i should have that sign up in my shop--



[LVLAaron]

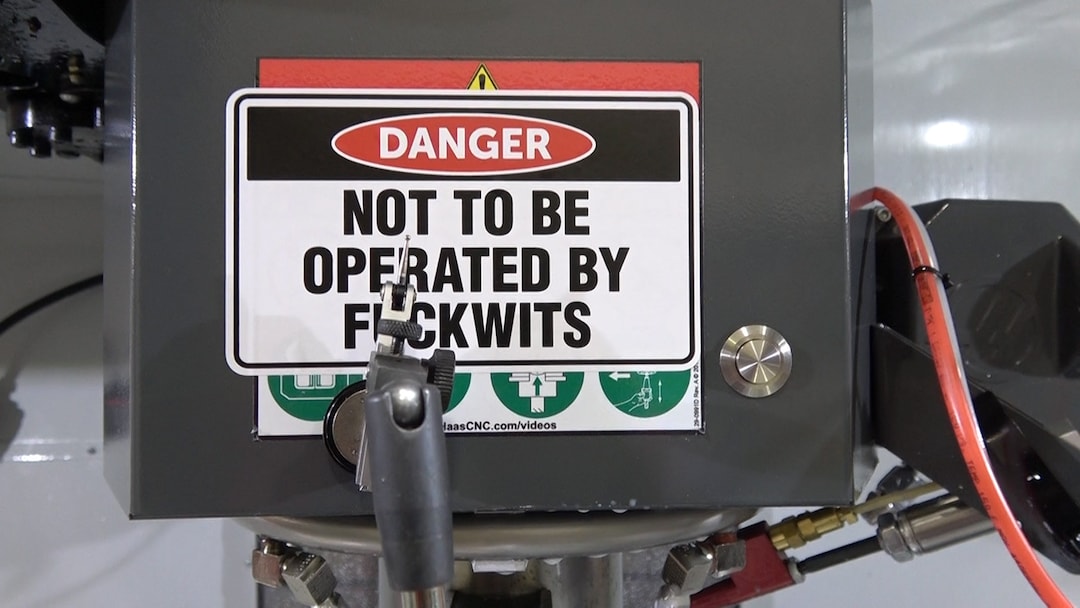

I've got one of these up. It's one of my favorite things.



[762plinker]

I can't imagine laying down a 5.5" stylus in a 6mm bore and trying to indicate with it.

what 6mm cartridge needs a 5.5in chamber ??
the 2.9/2.75 seem todo most common br chambers



[Dusty Stevens]



[ridgeway]

what 6mm cartridge needs a 5.5in chamber ??
the 2.9/2.75 seem todo most common br chambers

I'm not saying for a particular cartridge. I'm saying in general terms. The 5.5" will be extremely tricky to use stuck deep in any bore. Some prefer to indicate just a long section ahead of the neck and not worry about anything else. I'm guessing that is why they use them. I got my method and it will never involve a 5.5'er...
