Custom Sizing Die Maker for SAUM clickers?

[RabbitSlayer]

I have determined that my 7 SAUM clickers are due to the chamber being cut with a reamer that is the min saami spec at the 200 line. The Forster fls die and cortina expander die basically don't move the brass at the .200 line. At most its being moved .0005. This is probably made worse by the adg brass being very hard. I would like to send the fired brass and reamer print and get a die made.

I saw on a Hornady podcast that they offer this service. Would Hornady be sufficient or should I look elsewhere?



[L.Sherm]

Custom die may not solve your problem not always will I.E. PRC, opening up the back end sounds like the solution.
Finding the smith that has the correct reamer and setting the barrel back might well be cheaper in the long run.



[RabbitSlayer]

Custom die may not solve your problem not always will I.E. PRC, opening up the back end sounds like the solution.

That would be a huge pia compared to a die.



[L.Sherm]

That would be a huge pia compared to a die.

Not if the die doesn't work. Brass will only size back so far at the web especially the brass you currently are shooting.
Many tried the die thing with the PRC's and failed.
Polishing out the back is another option.



[1911mag]

Jim Cartensen

https://www.6mmbr.com/catalog/item/1433308/892435.htm



[RabbitSlayer]

Not if the die doesn't work. Brass will only size back so far at the web especially the brass you currently are shooting.
Many tried the die thing with the PRC's and failed.
Polishing out the back is another option.

I hear you. I just don't even have it in me to pull the barrel and deal with it this season. Already had the joy of chasing my tail since September due to a defective scope.

I only have like 32 cases that have been fired. 12 of them 8 firings and the rest 2 firings. I know I may not be able to save those cases, but thats fine. Im hoping if I start with a tighter die on the remaining 100+ new pieces I won't have a problem.

Be easier if there was a smith I trusted near me.



[Relic]

I've had great luck with whidden making my custom wildcat dies, both bushing and micrometer seaters. Just call and talk with them on your needs! Bill



[CJ6]

Jim (JLC) made my PPC dies I couldn't be happier.



[MTlager]

Just use Norma brass . I don’t get clickers with it . Just ADG!!



[NZ_Fclass]

Redding body die?



[Willow]

Just use Norma brass . I don’t get clickers with it . Just ADG!!

I run ADG in a custom SAUM improved, but have never tried Norma brass. I can only assume Norma is smaller at the .200 line? Is this the case? (no pun intended)



[Leeman]

I've had great luck with whidden making my custom wildcat dies, both bushing and micrometer seaters. Just call and talk with them on your needs! Bill

I'm sure they said they were stopping making custom dies.



[DLT]

I have determined that my 7 SAUM clickers are due to the chamber being cut with a reamer that is the min saami spec at the 200 line. The Forster fls die and cortina expander die basically don't move the brass at the .200 line. At most its being moved .0005. This is probably made worse by the adg brass being very hard. I would like to send the fired brass and reamer print and get a die made.

I saw on a Hornady podcast that they offer this service. Would Hornady be sufficient or should I look elsewhere?

Talk to @DaveTooley. He fixed my clicker problem very fast.



[TylerFromMS]

SELLING Post in thread 'ADG Fatboy (1 1/4”) 7 SAUM die'

Dec 30, 2025

Lower price.

• TylerFromMS

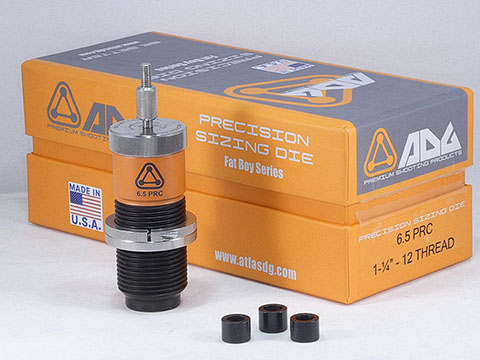

ADG Fat Boy 1-1/4" Bushing Resizing Die - Atlasdg.com

ADG Premium 1-1/4″x12 Resizing Die. Specifically designed for tough, high quality ADG Cartridge Brass for Proper and Optimum full length sizing of the cartridge case – all the way down to its base. These dies come with three 0.375″ Diameter Bushings, the ADG recommended nominal size and a...

atlasdg.com

Shameless plug.



[DaveTooley]

A new die seldom solves the root problem. It's an easy fix. More predictable than, Maybe a new die will solve my problem.



[L.Sherm]

A new die seldom solves the root problem. It's an easy fix. More predictable than, Maybe a new die will solve my problem.

And alot cheaper in the long run.



[Ringostar]

A lot of people recommend a roll sizer, and they offer an adjustable one for various size cases. They’re not cheap though.



[BoydAllen]

A new die seldom solves the root problem. It's an easy fix. More predictable than, Maybe a new die will solve my problem.

Dave, is the easy fix opening up the back end of the chamber very slightly? That is my thought.



[pdhntr]

Before us old guys had computers and the internet, if you lived in an area without any formal shooting competition that would provide contact with others like I do, you were pretty much on your own to figure out problems. Didn't stop us from experimenting in the least.

When we ran into clickers the usual fix was to open up the rear of the chamber a little, test, and if they continued, open up a little more until they stopped. A couple of those chambers are still performing perfectly 50 years after the modification.

Jim



[JackWolfKnives]

I run a SAUM with ADG brass. I’m curious what powder, bullet and charge weight you were using.

I established my own reamer and changed the dimension at the 200 line to 0.5520. SAAMI is 0.5510. This is the secret sauce.

I have 1000 cases. All have been fired once. Most have been fired twice. All with 62.0 - 63.0 grains of H1000 and a 180 Hybrid without a single clicker or heavy bolt lift to speak of.
