Bore guide, how far in?

[Chiquita]

I am assuming a good bore guide should not just sit on the beginning of the chamber but rather go in and stop right before the rifling. Correct?



[Tokay444]

I am assuming a good bore guide should not just sit on the beginning of the chamber but rather go in and stop right before the rifling. Correct?

They’re tapered. They can only go in until the cone stops at the breech face.



[Bill Norris]

I am assuming a good bore guide should not just sit on the beginning of the chamber but rather go in and stop right before the rifling. Correct?

Yes mine has a snout with an O-ring that goes into the chamber and seals off to keep the chamber dry.



[Tokay444]

Yes mine has a snout with an O-ring that goes into the chamber and seals off to keep the chamber dry.

Those PMA ones that are cartridge specific are probably the best of the best.



[Chiquita]

So the ones that just sit at the chamber mouth are not something that I want to to continue to use.



[Tokay444]

So the ones that just sit at the chamber mouth are not something that I want to to continue to use.

Do you have a picture of what you’re using?



[spencerhenry]

Just the tip!!



[Chiquita]

Those PMA ones that are cartridge specific are probably the best of the best.

Looks like they are very well made.



[Chiquita]

Do you have a picture of what you’re using?

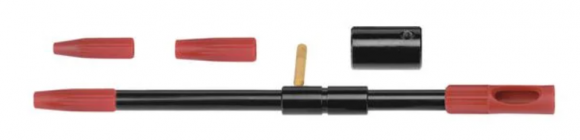

This is from Tipton but other brands have the same setup.



[Jtate]

Yes mine has a snout with an O-ring that goes into the chamber and seals off to keep the chamber dry.

Once you go "O" ring you will never go back



[Tokay444]

That’s what I use, and it works for its intended purpose, but if I did it all over again, I would go with the PMA guide(s). With these, you just need to watch the tension of the “handle” so they it’s making its best seal on the chamber.
I think mine is Pro-Shot.



[Kracken McGraw]

View attachment 1305911

This is from Tipton but other brands have the same setup.

It will work fine but it will not support cleaning rod on back end like a custom one will. I do use this one you have pictured on some Savage’s, but I still put my custom rod guide on the rod and it sticks in the end of the Tipton bore guide well enough to do a good job.



[Chiquita]

Yes mine has a snout with an O-ring that goes into the chamber and seals off to keep the chamber dry.

Bill, which one do you have and how does it stay in place? Just by the friction of the "O" rings?



[newbieshooter]

Rifle Cleaning - Cleaning Rod Guides - Page 1 - PMA Tool

www.pmatool.com

I use Lucas Bore guides. Each bore guide is action/cartridge specific, and the rod guide are made to fit your cleaning rod diameter.
Bulletin link:

You are being redirected...



[Bill Norris]

Bill, which one do you have and how does it stay in place? Just by the friction of the "O" rings?

Not real sure of brand but yes the Oring is a special kind of material that holds it in place. Will get a pic to u tomorrow.



[284winner]

View attachment 1305911

This is from Tipton but other brands have the same setup.

Universal models work but the chances of them leaking are better than the O ring exact fit models. They also get loose during use. Sinclair makes a good one. Others out there as well that are cartridge(case) specific.



[Shooter13]

I use Lucus and they are action and caliber specific, O'ring hold them in place in MOST calibers (not 30 Major).



[jepp2]

Yes mine has a snout with an O-ring that goes into the chamber and seals off to keep the chamber dry.

I use the Possum Hollow brand. Most, except for the rim-fire ones, use O-rings, but NONE of mine Keep all the chamber dry. But there is only a slight residual solvent near the neck and throat of the chamber. But my last action after removing the bore guide is to clean the chamber and dry it.



[old_heli_logger]

Mike Lucas makes the best that I know of...
lucasmjb@windstream.net



[jimmymac]

Don't discount the cheaper ones that Lester Bruno sells. I love my PMA bore guides, but the cheaper option through Lester works quite well. Just specify action and caliber and he may have something that works well for you. I have three of Bruno's bore guides. They all seal good and work far better than the Tipton or any other universal bore guide.
