Accuracy international tennon drawing?

[X Count]

Does anyone have a AI tennon drawing? With a measurement over wires would be a bonus!



[Jonnyofalltrades]

Good luck!



[X Count]

Im sure someone on here has done a barrel for an AI at some point.



[GenePoole]

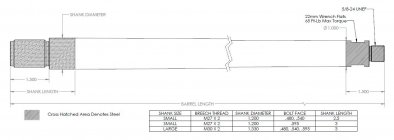

I've got an actual CAD file somewhere, and I'll try to dig it up, but I found this PDF in my photos:



[X Count]

Thanks!

Looks to be similar to the other drawing I found.

From what I'm reading, the AE has the same tennon but used a seperate recoil lug like a Remington but .500 thick so the front .500 is unthreaded.



[SKWERLZ]

27 or 30mm?


I used to have some better prints
I’ll see if I can find them.



[X Count]

27mm



[shoot4fun]

Does anyone have a AI tennon drawing? With a measurement over wires would be a bonus!

IIRC, the AW, AT, AXSA and the last AE iteration before discontinuation Used AW action) will all use the same tenon. I am not sure on the ATX or ATXC but the AXMC and AXSA use different specs.
Which are you wanting?
IF I needed any spec for an AI tenon I would ask @DaveTooley .



[tobnpr]

Metric tenon and UNEF muzzle threads.
Brits...



[LVLAaron]

Metric tenon and UNEF muzzle threads.
Brits...

I also find that a bit humorous.



[X Count]

Pretty coarse thread as well.



[SKWERLZ]

Pretty coarse thread as well.

I thought so.



[GenePoole]

2.0 mm is equivalent to 12.7 pitch.



[GenePoole]

Metric tenon and UNEF muzzle threads.
Brits...

I believe the actual AI factory threaded muzzle is M18x1.5.
