Savage SA and KRG Bravo Feeding Issues

[SVT_Tactical]

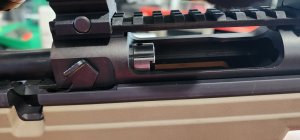

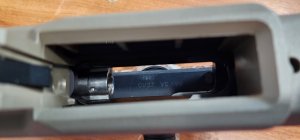

Up until now I have single feed my savage 110 in the Bravo chassis. I wanted to load some rounds that fit in a mag that I could test for trying to find an accurate mag length round. The bolt doesn't go far enough back to grab a round..... I'm not great with savages but the bolt stop prevents it from going any further back. Modification to the bolt stop would effect the bolt cocking.
Suggestions? What an I missing?
Problem has been solved. There was a 223 collar on it as shown below. Cut it down and all works fine now.



[Rocketvapor]

You got this:

Savage Short Action Front Bolt Baffle Stainless

Savage Short Action Front Bolt Baffle Stainless - 103321 - Bolt Heads and Parts - This is a factory original replacement part. This is also used when converting a bolt from 308 size to .204/.223/300 Blackout. NOT AXIS COMPATIBLE! Gun Shack DOES NOT

www.gunshack.com

or this:

Savage Arms Front Bolt Baffle Savage 110 Through 116 SS

This replacement part is a factory original from Savage Arms. Factory replacement parts are manufactured to the exact same specifications and...

www.midwayusa.com



[rjtfroggy]

Just a guess but is the back of the mag up to high and catching the bolt.



[Rocketvapor]

Pull the bolt, take a pic showing the front baffle.



[SVT_Tactical]

Pull the bolt, take a pic showing the front baffle.



[SVT_Tactical]

Just a guess but is the back of the mag up to high and catching the bolt.

Nope. With mag removed its still stopping at same spot.



[SVT_Tactical]

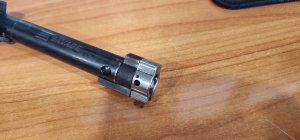

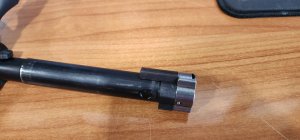

Looks like I have the long baffle. I'll order the shorter one. Thanks guys.



[SVT_Tactical]

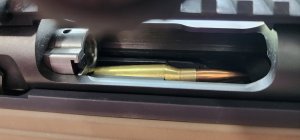

Took a dremel too existing one and got it going. Thanks all.



[Bill Norris]

Took a dremel too existing one and got it going. Thanks all.

Dang sounds like you are hard at work Bro.



[DLT]

View attachment 1574473View attachment 1574474

I think those baffles were used in the 223 actions



[Dgd6mm]

Possibly cut the leg of the baffle down. In other words shorten it.



[SVT_Tactical]

Possibly cut the leg of the baffle down. In other words shorten it.

What I did
