Picatinny female slot

[itchyTF]

I bought a tool to cut the female picatinny slot. I can’t find a spec for the slot. Used a piece of scrap delrin and cut a slot which fits one of my pic rails, doesn’t fit the other 3. Apparently they are not the same. My concern is if I cut it to fit the largest it will be real sloppy on the smallest. Any specs out there?



[jkohler]



[itchyTF]

That’s the rail (male). I’m looking for what that slides into.



[jkohler]

The weaver does have a narrower grove of .180 or something like that



[Dusty Stevens]

Kelbly .206, stiller .205, bat .208 and .209. Those are 4 i had laying here



[wvlongshot]



[wvlongshot]

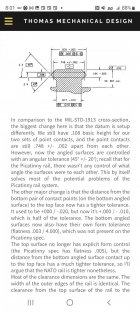

Didn't know there was a nato spec and a mil spec? Learn new stuff every day.



[itchyTF]

I may not have used the right terms. This is the “slot” I was referring to.


This is the tool I used.

After running down the centerline, I offset .130 left & right so the .591 dimension became .851. A bit more than .835 yet doesn’t fit these.




But does fit this.

That’s why I was wondering if there was a spec for that “slot”.
