Inspiration From Shelley's Tinker Toy

[rayjay]

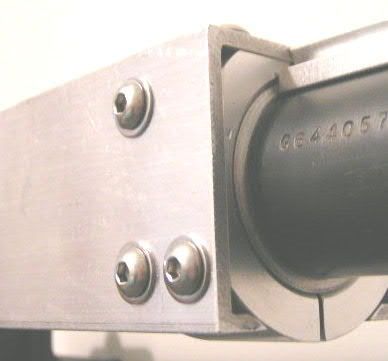

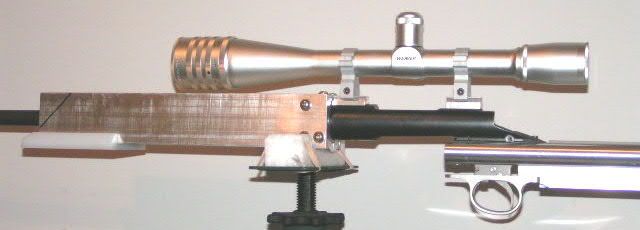

I call it the Erector Set. I will mill off the top surface of the 2" alum tube forend and add a guide plate. I still have to make some bits for the buttstock. If all goes well I will build a drop port Viper after I get some experience with this Rem actioned rifle.



[Spook]

Ray, Pretty nice!
I did one after Shelly's gun too. It ended up shooting really well, but weighed a ton!



[rayjay]

I may eventually do a version similar to yours what attaches the buttstock to the forend and free floats the rec.

I can also use a conventional style stock similar to how one is used with a bbl block. I feel the advantage my design has is there is no stress placed on the action or bbl.



[lazylabs]

In the top model wouldn't all the stress be placed at the weakest part of the action,ejection/mag cutouts)? Is the rear attached to the barrel block/shroud? It's hard to tell but it looked to be mostly held on by the trigger area? Just asking....



[2700tenx]

rayjay
Beautiful. I seen the Tinkertoy also along with some others. I will be doing something similar to Spook.

Spook, where did you get the pistol grip?



[rayjay]

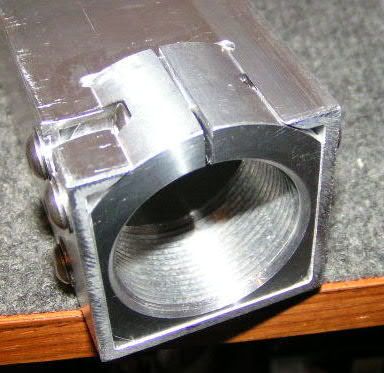

Added the glide plate and another piece to the buttstock.



[Spook]

2700tenx, I whittled it with my dremmel.

RayJay, what caliber is it?



[rayjay]

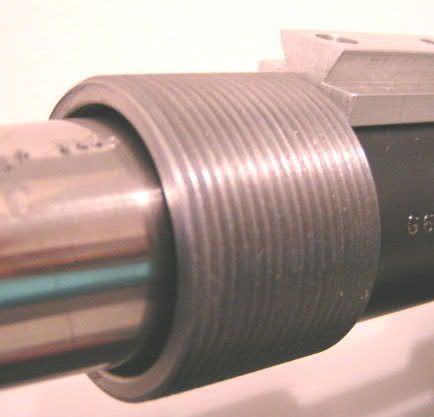

I have several bbls for my 40x or 700. 6PPC, 6 Beggs, 223 AI, 221 Fireball. I also have a 40x rimfire BR rifle that would work with this set up. The bbl in the second set of pics is just a junk 223 factory sporter bbl.
