Experiences with a BAT XL action?

[Evan]

I have been getting an itch to build a big target gun for fun (BR style, front rest and rear bag). I’m thinking about a 338 Lapua Mag improved or maybe a 37 XC. Due to the size and performance of these cases, along with my intended use, a big single shot action that has a larger bolt and lugs appeals to me for the strength and safety. I plan to hang a 1.35 or 1.45” barrel on it that can make use of a larger tenon. Does anyone have experience with the newish BAT XL or have other advice and actions I should look into?



[matthias]

Check out the bat ct action.



[Evan]

Check out the bat ct action.

Looks to be shorter and lighter than than the XL. Any advantages or things you like about the CT?

Thanks!



[matthias]

It is a good size at 1.55 diameter. And the barrels you are talking about will do just fine in the 1 3/16 tennon. Also the ex is just massive. If you get a chance take a look at one. I almost ordered an ex , then saw one and decided the ct was a better fit. I will not be shooting a 50bmg or derivative anytime soon. But the ct can be had with magnum,lapua,and cheytac bolt face.



[LVLAaron]

The EX looks like a monster, even for a 50bmg



[Evan]

The EX looks like a monster, even for a 50bmg

The EX is huge. I have seen one of those from a distance. It looks like the XL neatly fits between the CT and EXS in size. I was drawn to the XL for the larger diameter bolt and extra 0.5” of port length over the CT. I have never seen a CT in person. Since this is a bench monster, I’m welcoming size and weight to tame it down. Related note: has anyone shot a 40-50lb 338LMI with no brake?



[LVLAaron]

Ultimate Reloader on youtube has an EX build - I can't tell if it's an action or a drive shaft



[MagnumW]

Look at the bell of your 50mm scope. Thats the diameter of the XL action :-0



[LVLAaron]



[Kurz]

There are other large scale actions available.

Pierce 20X Action​

The New Pierce 20X Action is capable of Handling any of your ELR Shooting Needs.

Lots of thought went into the footprint and lug design to provide a firm footprint that will not move or twist under the extreme forces from these large calibers.

We also upgraded all the fastener holes to meet these needs.

Available only in single shot and Right Hand configuration currently .



ACTION SPECS

• 2.00″ Diameter 10.00″ Length
• 4340 Chrome Moly Steel
• 1.500″ x 16TPI Tenon Diameter
• Available .645″, .710″ and .810″ Bolt Face
• Slide Extractor and Toolless Firingpin
• Standard Finish is Black Nitride.
• *5/16 x24 TPI Action Screws
• 1/4x28TPI Scope Mount Screws
• Weight is 6.5LBS including scope Rail

PRICING & OPTIONS

• 20X Action In Black Nitride * 1950.00
• Stainless Scope Rail * 50MOA or 70MOA 195.00
• Spare Slide Extractor Kit* 30.00
• Spare Firing Pin Assembly * 125.00
• 20 X Action Wrench * 75.00
• Extra Complete Bolt * 800.00

Stiller 1.600" (XXL)

Action Weights​

Body, Bolt, Rail, Recoil Lug, and Trigger Pins:​

55.4 oz

Action Body:
36 oz.

Bolt Only
15 oz.

Tenon Threads​

1.1875-16 TPI UN-3B

Threads are made with a single point boring bar and indexed to top center of action.

This allows any barrel ever fitted to a Stiller Action to be screwed onto any other Stiller Action without need for re-headspacing or re-indexing.

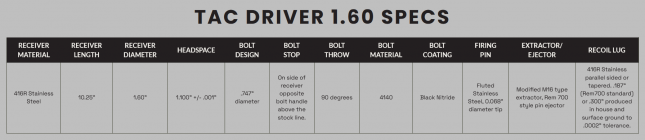

TAC DRIVER 1.60​

• $1,360.00

BOLT PORT: RIGHT HAND/ RIGHT PORT

RIGHT HAND/ RIGHT PORT

LEFT HAND/ LEFT PORT

BOLT FACE: (XXL SUPER / 408)

(XXL SUPER / 408)

(XXL HEAVY / 338)

MAG CONFIGURATION: REPEATER

REPEATER

SINGLE SHOT
