Regulator and gauge mod for the Giraud annealer...

Discussion in 'Reloading Forum (All Calibers)' started by TerryH, Feb 18, 2018.

  1. TerryH

    TerryH

    Joined:
    Aug 21, 2017
    Messages:
    459
    Thought I would share a mod I did on my new to me Giraud annealer. Love the machine but had a difficult time getting the flame just right. The stock torch valve adjustment is coarse and a bit difficult to repeat. The regulator also evens out the flow so as the pressure in the bottle decreases the flame will be consistent. I saw a few YouTube vids on regulators and thought I'd give it a try myself.

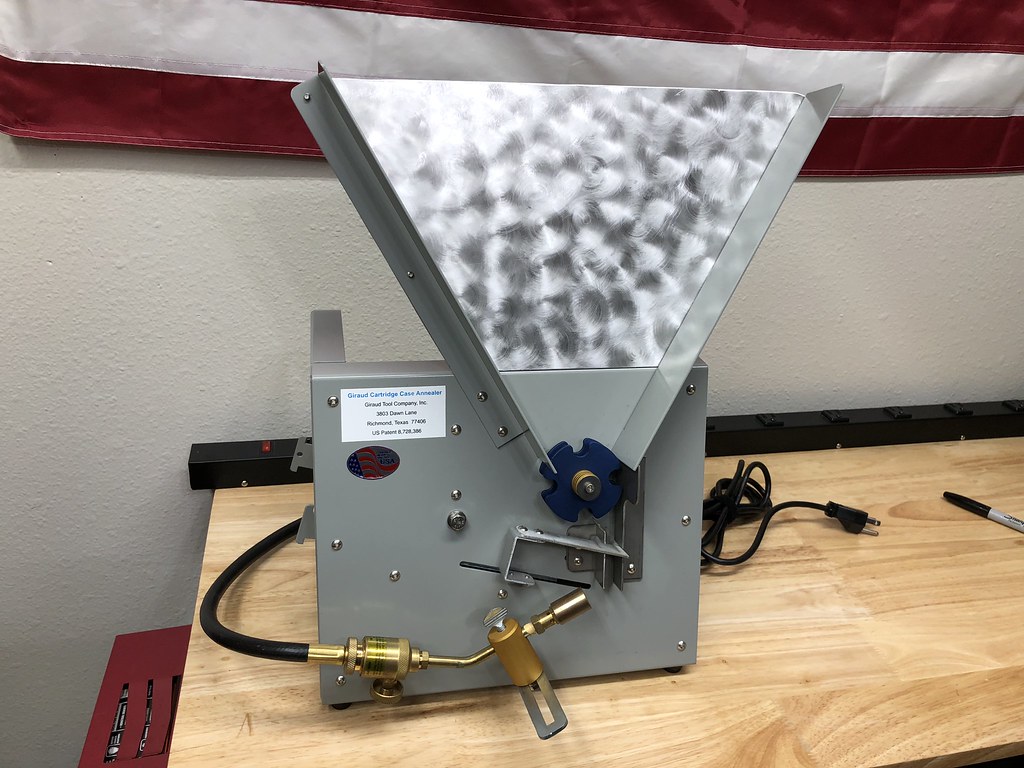

    Here is the torch setup as it comes from Giraud.

    [​IMG]

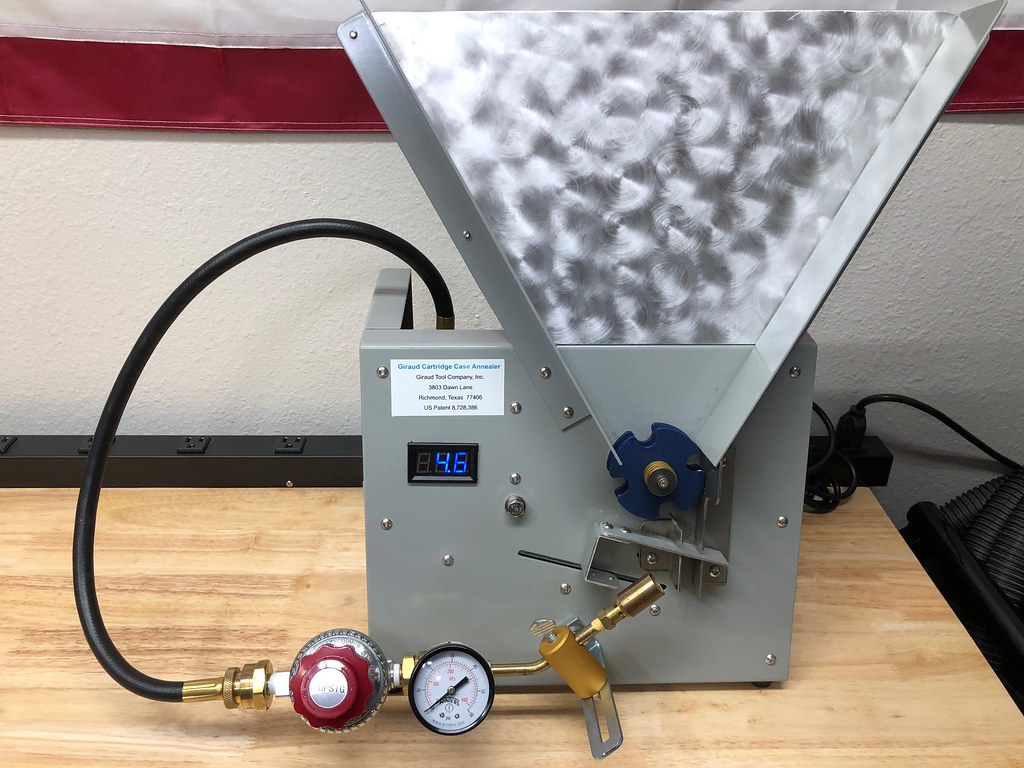

    And after adding the reg and gauge.

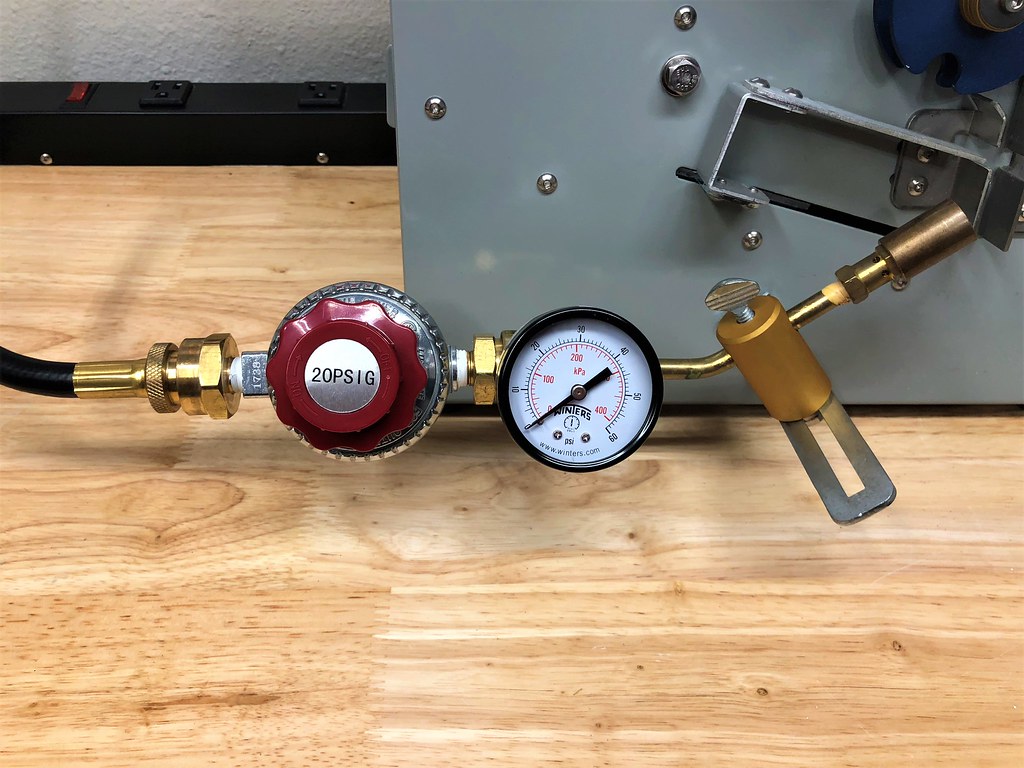

    [​IMG]

    [​IMG]

    Video showing more of the process. Links to all the parts are included in the description of the video. Total cost was $35.64. Everything was acquired from Amazon.

    Edit to include the links to the parts:


    The regulator: https://www.amazon.com/gp/product/B01M4GTKUP/?tag=accuratescom-20

    The gauge: https://www.amazon.com/gp/product/B0087UBLIK/?tag=accuratescom-20

    The fittings: https://www.amazon.com/gp/product/B000BQN4IS/?tag=accuratescom-20

    https://www.amazon.com/gp/product/B000BQM8IU/?tag=accuratescom-20



    And a video of the machine in operation.



    Hopefully this is helpful information for someone.

    Last edited: Feb 19, 2018
    DarkStar, JimSC, Nvclay and 4 others like this.
  2. Archer

    Archer

    Joined:
    Feb 15, 2014
    Messages:
    120
    Thanks for the info...I too have fought with that stock adjustment knob...

    TerryH likes this.
  3. chardog

    chardog Silver $$ Contributor

    Joined:
    Dec 17, 2014
    Messages:
    64
    Great idea! Any chance you have part numbers from Amazon? Did a quick check and fittings hard to find.

    TerryH likes this.
  4. TerryH

    TerryH

    Joined:
    Aug 21, 2017
    Messages:
    459
    fatelvis, ngb1787 and chardog like this.
  5. chardog

    chardog Silver $$ Contributor

    Joined:
    Dec 17, 2014
    Messages:
    64
    Thanks! Parts ordered.

    TerryH likes this.
  6. Comrade Terry

    Comrade Terry Gold $$ Contributor

    Joined:
    Apr 7, 2014
    Messages:
    747
    Thanks for this, Terry. I just ordered the parts.

    TerryH likes this.
  7. ngb1787

    ngb1787 Silver $$ Contributor

    Joined:
    Feb 2, 2016
    Messages:
    367
    Thanks, parts ordered!

    TerryH likes this.
  8. pirate ammo

    pirate ammo Guaranteed to take the wind out of their sails Gold $$ Contributor

    Joined:
    Dec 9, 2017
    Messages:
    2,584
    looking to get a Giraud ,,with the regulator, wonder how it would work with a 25lb. propane tank? bar-b-que and anneale at the same time!!

    Just Dave and TerryH like this.
  9. TerryH

    TerryH

    Joined:
    Aug 21, 2017
    Messages:
    459
    That's exactly how this guy has his set up...with the 25lb tank...not to BBQ at the same time. :D


  10. pirate ammo

    pirate ammo Guaranteed to take the wind out of their sails Gold $$ Contributor

    Joined:
    Dec 9, 2017
    Messages:
    2,584
    thats what I was thinking, the small tanks work,but regulate and go BIG,,less change out and do more,,but on the bar-b-que side only postoak or hickoroy

    TerryH likes this.
  11. TerryH

    TerryH

    Joined:
    Aug 21, 2017
    Messages:
    459
    Hickory without question.

  12. pirate ammo

    pirate ammo Guaranteed to take the wind out of their sails Gold $$ Contributor

    Joined:
    Dec 9, 2017
    Messages:
    2,584
    born and raised in northwest Florida,lower Alabama,,hickory,,for some reason moved to Texas,postoak

    TerryH likes this.
  13. Michael C

    Michael C

    Joined:
    Mar 19, 2012
    Messages:
    105
    Great post and video. I ordered the parts. Thanks!

    TerryH likes this.
  14. Just Dave

    Just Dave Silver $$ Contributor

    Joined:
    Feb 10, 2016
    Messages:
    267
    I got the same parts, only put the 25# tank, regulator and a 6' hose that I run up the back of the bench, so it can be tucked away when not in use..
    The larger tank is much better, pressure will not change when running large batches ( like 4-600 cases of 50BMG )

    TerryH likes this.
  15. TerryH

    TerryH

    Joined:
    Aug 21, 2017
    Messages:
    459
    I saw some guys doing that but for me the throw away is fine. At this point I'm only doing my .308 cases for F-T/R so at most 200 at a time. Perhaps I'm just paranoid but I preferred the smaller one also so as to not have 25# of propane in a spare bedroom. ;)

    Just Dave and Comrade Terry like this.
  16. Just Dave

    Just Dave Silver $$ Contributor

    Joined:
    Feb 10, 2016
    Messages:
    267
    .
    Up until I did this ,, I had run across almost 50 bottles of MAPP gas, for FREE Even using them to start campfires in the back yard, I only went thru 3-4 little tanks a year.
    One day I was moving things around, and came across almost 10 tanks that had leaked out completely , somewhere over a 5 year period inside my attached garage.
    I remember the Propane plant fire in Texas ? a few years back, and envisioned a bunch of miniature versions of that, going off during a fire, and decided to sell most of them cheap.
    .
    Yea, for sure not inside the house ,, and double sniff-check those tanks iffin you ever decide to take the hose off,, some of them don't seal back shut when you take the fitting off..

    TerryH likes this.
  17. TerryH

    TerryH

    Joined:
    Aug 21, 2017
    Messages:
    459
    Wow. That's crazy. Good point. Never thought about them leaking down like that.

    Just Dave likes this.
  18. TerryH

    TerryH

    Joined:
    Aug 21, 2017
    Messages:
    459
    One last mod and I now call it good. Friend of mine added a volt meter to his Annealeze to make setting the potentiometer easier so I followed suit. Coll little mod. Volt meter is $6.99 from Amazon. More time spent cutting the mounting hole in the case than anything else. Simple 3 wire install. Works great and makes setting the speed super easy.

    Link to the meter: https://www.amazon.com/gp/product/B00CXMLIL8/?tag=accuratescom-20

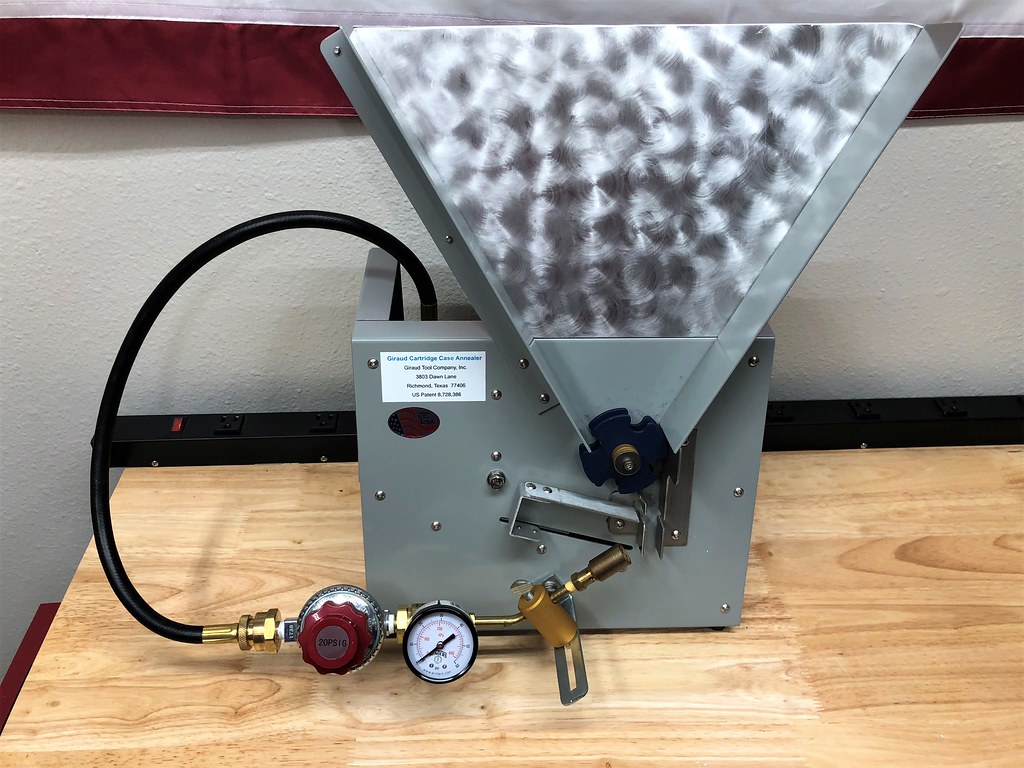

    [​IMG]

    Vid of the completed annealer in action. IN the description on this video there is a link to my buddy Joe's video showing the install on the Annealeze. Same setup on the Giraud.


    Jdne5b and Toejoe12 like this.
  19. wolfman

    wolfman Silver $$ Contributor

    Joined:
    Feb 21, 2008
    Messages:
    309
    Nice! Looking forward to making these upgrades. Thanks for sharing.

    TerryH likes this.
  20. Michael C

    Michael C

    Joined:
    Mar 19, 2012
    Messages:
    105
    I installed the parts last night, and I found it to be an improvement. I also installed a new speed control that has a wider range so it is not too touchy. Very easy to do also. Not my video but I used it for the instructions:

    TerryH and Just Dave like this.

Share This Page
