New barrel system- one chamber and replaceable barrels

Discussion in 'Gun Project Questions & Gunsmithing' started by BountyHunter, Apr 12, 2016.

  1. BountyHunter

    BountyHunter Gold $$ Contributor

    Joined:
    Nov 29, 2004
    Messages:
    244
    [​IMG]

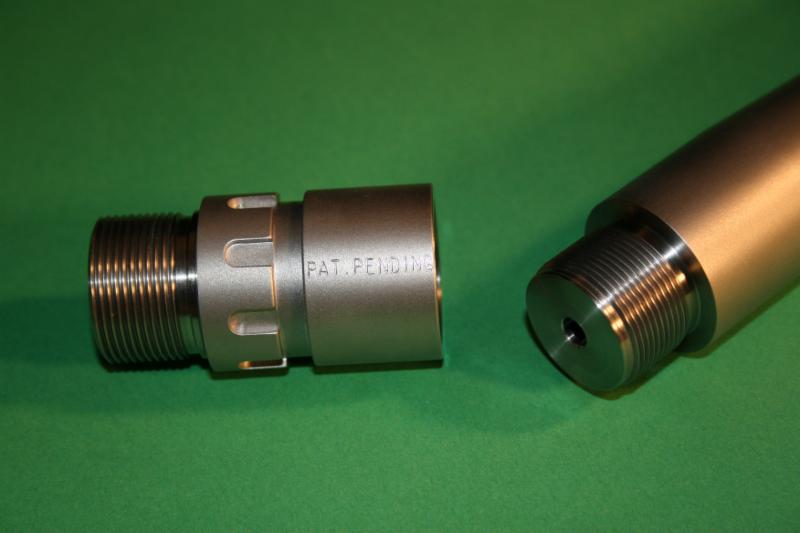

    Has anyone seen this new patented barrel system by Wolf Precision. Supposed to be by BAT and when need new barrel, just thread on new barrel to the separate chamber mounted on BAT receivers. Wolf says that they are only ones doing this.

    http://www.wolfprecision.net/new-chamber--barrel-system.html

  2. Dusty Stevens

    Dusty Stevens

    Joined:
    May 8, 2014
    Messages:
    3,874
    Where is the revolver type cylinder gap located the bullet jumps thru?

    370bc and mac86951 like this.
  3. Grimstod

    Grimstod Web Designer for PremierAccuracy.com Gold $$ Contributor

    Joined:
    Jan 23, 2014
    Messages:
    1,342
    I have seen these in person. The guy is rather erogent. I tried to video interview him and he said no and flatly. Its an interesting idea. Seams like one more thing that could go wrong though.

    jdh47 and dmoran like this.
  4. WSnyder

    WSnyder

    Joined:
    Aug 21, 2015
    Messages:
    81
    Jaime Dodson from Wolf is not an arrogant person. I have found him to be quite pleasant and very helpful. Not everyone wants to be video'd and have it published by an unknown for all to see without any control over the content. Depending on how you approached it I might have given you a flat no as well.

    He's considered to be a very good gunsmith and Bat is considered to be a very good action maker so why not give this thing a chance and see how it pans out before condemning it? It may not suit your needs but maybe it will for others.

    Last edited: Apr 12, 2016
  5. CJ6

    CJ6

    Joined:
    Feb 29, 2008
    Messages:
    2,131
    I would be conscerned with gas cutting/leakage at the joint. The Fit/Finish would need to be flawless. Novel idea though.

  6. Ggmac

    Ggmac

    Joined:
    Aug 11, 2012
    Messages:
    2,193
    I experimented with the same set up over 20 yrs ago . The gap between barrel and chamber carbon fouls and erodes quickly . It's not feasible , if it was the military would have been doing it 50 yrs ago .
    A system that worked better , at least for me , was to have the chamber neck in the barrel . There by eliminating flame cutting and deposits .
    It's definately not new as my experiments 20 + yrs ago were based off WW1 machine gun barrel testing that I read about.

    hogpatrol, boltfluter and Toolbreaker like this.
  7. swd

    swd Gold $$ Contributor

    Joined:
    Nov 25, 2008
    Messages:
    1,449
    Since you still have to dial the barrel in, thread it and put in some sort of a throat all it saves you is chambering and breaching for the type of action. Depending on the chamber size 20-40 minutes. I just really don't see the point of it. It's just something else to sell.

  8. Grimstod

    Grimstod Web Designer for PremierAccuracy.com Gold $$ Contributor

    Joined:
    Jan 23, 2014
    Messages:
    1,342
    I have approached many boothes and never been rejected. Kelblys, Nightforce, Premier Accuracy, Hillbilly Custom, Nosler, LAW and more. Never had anyone not want to be videod or interviewed except him. I am sure he is nice to people that buy his guns though.

  9. Dos XX

    Dos XX Russell Myers Gold $$ Contributor

    Joined:
    May 30, 2013
    Messages:
    824
    I guess if you had more than one chamber, you could shoot different cases through the same barrel, say .260 and 6.5 x 47L. I can't imagine why I would want to, but someone might. Seems like a solution in search of a problem.

  10. Dusty Stevens

    Dusty Stevens

    Joined:
    May 8, 2014
    Messages:
    3,874
    I did this to one of your barrels. Needed an experiment

  11. Dusty Stevens

    Dusty Stevens

    Joined:
    May 8, 2014
    Messages:
    3,874
    I am actually glad folks try new things. I can definitely see the upside to it. May have to do a few myself to see how practical it is. Its a damn site better idea than most schemes i see these days

  12. Dos XX

    Dos XX Russell Myers Gold $$ Contributor

    Joined:
    May 30, 2013
    Messages:
    824
    It is a cool idea.

    I can see some uses. Let's say you load up some 185 gr bullets and some 215 gr bullets for a match, planning to shoot whichever one the conditions favor. You could screw off the 215 chamber and install the 185 chamber.

    Of course you could do the same thing with two chambered barrels. I'm betting the chambers are more expensive than a complete chambered barrel, but you only buy them once, I guess. You still have to have the barrel threaded though. What are we saving?

    Can't decide if I need one.

    Last edited: Apr 12, 2016
  13. WSnyder

    WSnyder

    Joined:
    Aug 21, 2015
    Messages:
    81
    The throat is in the barrel and not in the chamber so you'd be changing out the barrel for different a throat length. Barrels at one time were listed at $550 (threaded at muzzle too) and chambers $485. So once you've purchased a chamber a fresh barrel ready to screw on is $550 with no fitting, order it and have it screwed on. Fits Bat Tactical Action and newer Bat HR and Bat VR's.

  14. Dos XX

    Dos XX Russell Myers Gold $$ Contributor

    Joined:
    May 30, 2013
    Messages:
    824
    Interesting. So I guess what you gain is the ability to get a barrel quickly as opposed to having to buy a barrel and then having it chambered. Not a real advantage to me, but I can see how it would be for some.

  15. BigBlueandGoldie

    BigBlueandGoldie

    Joined:
    Sep 26, 2015
    Messages:
    247
    Or for $550 you can call your gunsmith and have a whole new chambered barrel sent to you ready to screw on. I guess I still don't see the point?

    Last edited: Apr 13, 2016
    Ggmac likes this.
  16. JohnKielly

    JohnKielly Australia, not Austria

    Joined:
    Oct 25, 2007
    Messages:
    616
    I seem to recall that a separate chamber & barrel was used a century or two ago with black powder firearms.

  17. boltfluter

    boltfluter Gold $$ Contributor

    Joined:
    Jan 3, 2012
    Messages:
    1,752
    Looks like a great opportunity to stack tolerances and end up with a non-concentric throat. Just can't see the logic in this. Certainly thinking outside the box though.

    Regards, Paul

    www.boltfluting.com

    ab_bentley and Ggmac like this.
  18. JarheadAZ

    JarheadAZ

    Joined:
    Jun 1, 2013
    Messages:
    233
    Personally, I like the thinking. The devil is in the details. I will be looking to see more on this as time passes.

    I think it's worth a try as a proof of concept, and that such a proof could generate the economies of scale that could make this an economical concept. If this works, it could be a big part of shooting's future. It's probably bit early to be passing judgement yet.

    I'd like to see a replaceable throat insert incorporated into the barrel itself, as well. Is it absolutely necessary that there be rifling in the throat itself?

    Greg

    Last edited: Apr 15, 2016
  19. ebb

    ebb

    Joined:
    Oct 31, 2010
    Messages:
    1,022
    I think if you were a short range benchrest guy you could have a bunch of barrels threaded and try to find the best 3 or 4 for next season and do it all in one day at the range.

  20. BigBlueandGoldie

    BigBlueandGoldie

    Joined:
    Sep 26, 2015
    Messages:
    247
    Or for the same price you could have 3 or 4 complete barrels and try them all out in one day. Barrel swaps are easy.

    butchlambert likes this.
