Flush cups into wood

Discussion in 'Main Message Board' started by CF2209, Jul 18, 2019.

  1. CF2209

    CF2209

    Joined:
    Feb 21, 2018
    Messages:
    30
    Could anyone advise me.
    I would like to sling a new hunting rifle which has a hardwood stock and would like to know if flush cups can be fitted into a wood stock. Has anyone done this. If so how satisfied were you with the result, or are they fraught with pulling out.
    Thank you in advance.

    Don and daleboy like this.
  2. daleboy

    daleboy Silver $$ Contributor

    Joined:
    Mar 27, 2017
    Messages:
    1,277
    Following with interest . I have an old stock in need of a sling.

  3. Alex Wheeler

    Alex Wheeler Gold $$ Contributor

    Joined:
    Feb 5, 2011
    Messages:
    5,899
    No problem, drill, tap, and epoxy in place.


  4. msinc

    msinc

    Joined:
    May 14, 2011
    Messages:
    1,882
    When you say "flush cups" I am guessing you are referring to quick detach, push button types like the ones MagPul makes??? If so, Uncle Mikes makes cups that you epoxy in place. They work fine and will not pull out as long as they are installed properly. You have to drill the stock with a 1/2" drill and this is the critical part. It has to be located right and drilled to the correct depth. If you go too deep you can shim under it to set it in the right place so that's not too bad. The critical thing is that the 1/2" hole has to be true and not wobbled out. The flush cup needs to fit the stock snug and not wobble around.
    Drilling a 1/2" hole in a stock sounds pretty simple...one of those "all ya gotta do" things. You can tell the folks that have tried it from those that have not. Forget about a hand drill. You need to have a drill press set up that you can positively clamp the stock in because a bit this big will want to grab and go in wood. You also need to have the speed set up around at least 1000 rpm. I like to run it faster to avoid cracking and tearing the wood on the surface and you need to be able to feed slow. You really need to check your set up with a piece of similar wood first before you try it on a valuable gun stock. I can attest to way too many stocks brought to me all drilled and gunched up by some idiot trying to install regular swivel studs...they really ruin a stock when the bit gets bigger.
    Bottom line, drill the hole right and use good epoxy and you wont have any problems. Brownells used to carry another type flush mount swivel that actually had a thread on the outside of the cup, but it appears they don't carry those any more.

    Crosshair1 likes this.
  5. prwhite

    prwhite Silver $$ Contributor

    Joined:
    Feb 25, 2008
    Messages:
    104
    Use a Forstner bit...large twist drills in wood generally make a mess.

  6. PatMiles

    PatMiles Gold $$ Contributor

    Joined:
    Feb 29, 2016
    Messages:
    1,079
    Not generally... ALWAYS!

    6MMsteve, damoncali, Mark W and 3 others like this.
  7. hogpatrol

    hogpatrol Don't criticize the farmer with your mouth full. Gold $$ Contributor

    Joined:
    Apr 28, 2009
    Messages:
    6,551
  8. LeoHuhta

    LeoHuhta

    Joined:
    Jan 16, 2009
    Messages:
    30
    Check the depths before you do your final setting.
    The button sling swivels need a bit of a flat around it so they can connect with the cup.

    hogpatrol likes this.
  9. msinc

    msinc

    Joined:
    May 14, 2011
    Messages:
    1,882
    No, use a center cutting end mill and like I said, spin it fast. The only way you'll make a mess with this is if the stock comes loose.

    PatMiles, Big_Daddy and hogpatrol like this.
  10. hogpatrol

    hogpatrol Don't criticize the farmer with your mouth full. Gold $$ Contributor

    Joined:
    Apr 28, 2009
    Messages:
    6,551
    Single end, two flute end mill in a drill press feeding with the quill? You better have your act together.:D

    msinc and shortgrass like this.
  11. msinc

    msinc

    Joined:
    May 14, 2011
    Messages:
    1,882
    I thought I should clarify from the previous post {and now again with this one} that I never advocated the use of neither a "twist drill bit" nor a "two flute end mill". Four flute, carbide, center cutting end mill with the stock clamped up in a vise. I do apologize for not spelling it out clearer.
    I have never had a problem with this set up. I have used the ones with the thread and they work fine, but the body was thinner steel and I had a couple of them crack the thread in the stock. Wood is not the best material in the world to try and tap. Some wood will hold up fine, a Boyd's laminate for example. Some does not, like a nice piece of figured walnut.
    I reiterate again, you want to see a guy make a mess out of a stock???? Keep telling him "yeah, not a problem, all ya gotta do....." Try it.

    Edit: in all fairness regarding the use of a Forstner bit, I believe there is no question that this style bit is most excellent and one of the best for drilling a nice clean true to size straight hole in wood, But most of them have a self feed thread or screw made in the middle that is the point of the bit too. The problem comes in when you have to drill to a precise depth, as in this case installing sling cups. That little feed screw doesn't want to stop feeding. The other thing is that they feed a little faster than you might want to run into a nice expensive stock even without the feed screw type point. The smaller ones just have a point and most of them just have one cutting blade for the flat part of the cut.

    Last edited: Jul 18, 2019
    hogpatrol likes this.
  12. 300_whisper

    300_whisper Gold $$ Contributor

    Joined:
    Jan 18, 2016
    Messages:
    1,080
    WHHHHHAAAATTT?!? Did you build that? These forums are going to be the death of my wallet. I want one now.

    msinc likes this.
  13. jds holler

    jds holler Gold $$ Contributor

    Joined:
    May 3, 2015
    Messages:
    1,636

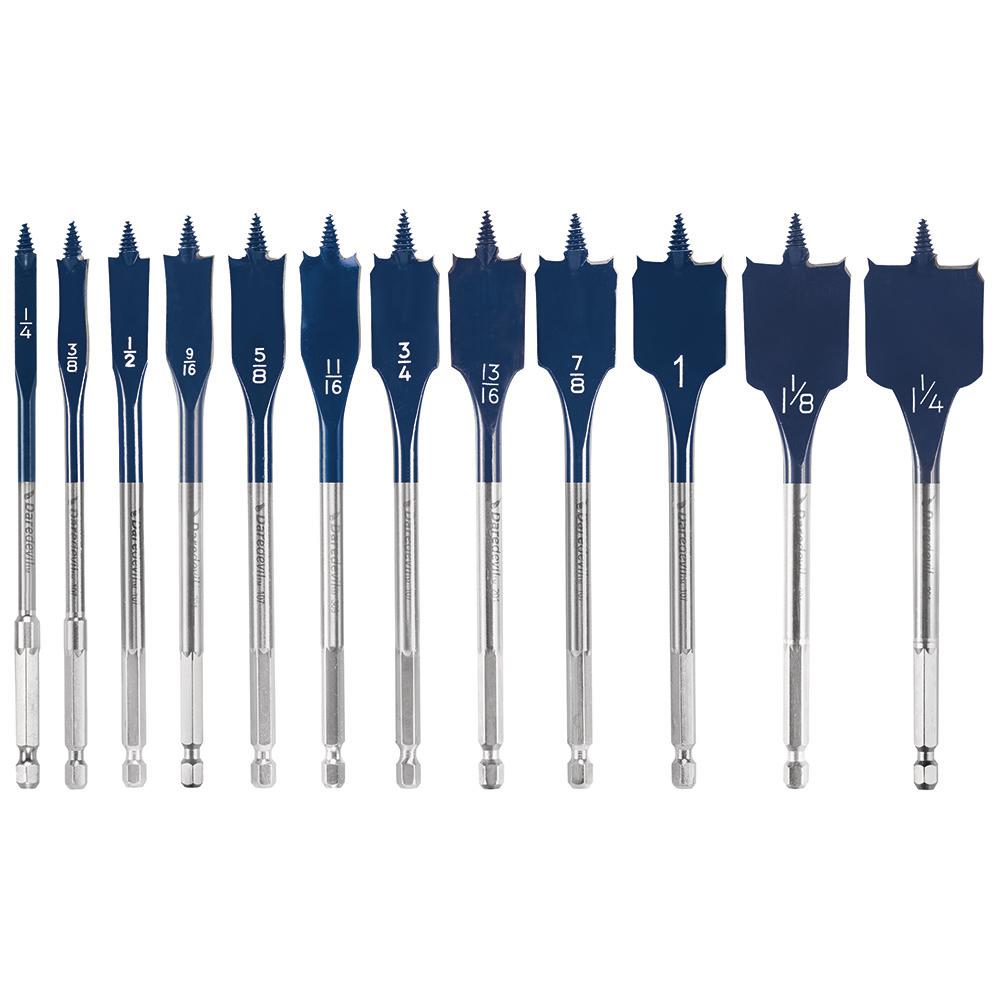

    Spade bit gets my vote. Inexpensive, doesn't try to feed itself, and can easily be customized to cut a hole that is smaller by a smidge. jd

  14. jds holler

    jds holler Gold $$ Contributor

    Joined:
    May 3, 2015
    Messages:
    1,636
    I can't help but mention also that I pity the foo who doesn't
    try a practice hole in a similar type wood or other material before he clamps his favorite stock in a vice and starts plunging implements of destruction in it.


    [​IMG]

    jepp2, Rustytigwire and msinc like this.
  15. Dusty Stevens

    Dusty Stevens COVFEFE- Thread Derail Crew Gold $$ Contributor

    Joined:
    May 8, 2014
    Messages:
    12,533
    No way id use anything but an end mill. And since we need to clarify, like msinc, id use a 4 flute, carbide, TiN coated, center cutting, single OR double ended (cant see how this would make a difference but who am i?) end mill. And every end mill i buy is an OSG or niagara and i cant think of a single ended one ive bought in 25+yrs. my old mentor told me never buy a single ended end mill unless youll never need a spare. Of course my 1” plus ones that have a shank too big for r8 collets are single ended. Thats how i roll.

    msinc likes this.
  16. Doug Beach

    Doug Beach Silver $$ Contributor

    Joined:
    Mar 22, 2015
    Messages:
    221
    Not having used end mills on wood much, what bad things happen when using a two flute?

    msinc likes this.
  17. Dusty Stevens

    Dusty Stevens COVFEFE- Thread Derail Crew Gold $$ Contributor

    Joined:
    May 8, 2014
    Messages:
    12,533
    Nothing that ive seen. Cant imagine anything scarier than plunging a paddle bit into a good stock though!

    6MMsteve and cptjack like this.
  18. Alex Wheeler

    Alex Wheeler Gold $$ Contributor

    Joined:
    Feb 5, 2011
    Messages:
    5,899
    Yes I did, its a Cerus GT stock.

    300_whisper likes this.
  19. hogpatrol

    hogpatrol Don't criticize the farmer with your mouth full. Gold $$ Contributor

    Joined:
    Apr 28, 2009
    Messages:
    6,551
    I used a two flute 1/2 end mill in a milling machine (Milrite) to do an H.S. stock.
    I've worked in shops that were we'd call cheap and had to use a single flute end mill in an Aloris holder for a boring bar.
    They also come in handy for down and dirty work in a drill press. I will refrain from saying anything about your mentor or where you served your apprenticeship. :p
    Aside that, fifty years in more than a dozen shops, I never saw anyone plunge with a four flute. Standard accepted practice is two flutes for plunging.

    Last edited: Jul 19, 2019
  20. 46and2

    46and2

    Joined:
    Jan 22, 2018
    Messages:
    63
    Did you make that stock or Joel Russo?
