Drop Tubes

Discussion in 'Reloading Forum (All Calibers)' started by NealC, Feb 22, 2019.

  1. NealC

    NealC

    Joined:
    Apr 1, 2015
    Messages:
    28
    Those long cylindrical powders always give me issues with blockage so I wanted to try out a longer drop tube. I also wanted to make the drop tube a specific length and with a diameter to fit my case perfectly. Yes, I know I am asking alot so I decided to draw one up. My friend used a 3D printer to make a prototype for testing and it worked extremely well. Now off to a 3D printing service to make one that is transparent.

    Untitled.jpg 20190222_191348.jpg

  2. Dusty Stevens

    Dusty Stevens COVFEFE- Thread Derail Crew Gold $$ Contributor

    Joined:
    May 8, 2014
    Messages:
    12,515
    Great idea. Is that for an rcbs measure?

    NealC likes this.
  3. oldroper

    oldroper

    Joined:
    Jul 24, 2005
    Messages:
    209
    NealC likes this.
  4. NealC

    NealC

    Joined:
    Apr 1, 2015
    Messages:
    28
    Yes it is.

  5. NealC

    NealC

    Joined:
    Apr 1, 2015
    Messages:
    28
    I was going to order that but they were out of stock. It seems Brownells is out of stock on a lot of things lately.

    Gun Smith likes this.
  6. AP2020

    AP2020

    Joined:
    Sep 14, 2008
    Messages:
    327
    Arrow shafts work well, too.


  7. ChrisA

    ChrisA Silver $$ Contributor

    Joined:
    Apr 5, 2015
    Messages:
    45
    Very nice, I can't believe they are not available for common powder measurers. I've wanted one for my Hornady but I can find any available. Plus, I bought a chargemaster and started weighing ever charge.

    Chris

    dgeesaman likes this.
  8. BenPerfected

    BenPerfected Gold $$ Contributor

    Joined:
    Nov 24, 2009
    Messages:
    1,256
    Harrell’s Precision has various drop tubes. My drop tube rig is attached to the bench using a RCBS funnel with a 8” drop tube. I short throw the powder into the pan, put it on the scale and let Adams Trickler does the rest.
    Ben

    Last edited: Feb 23, 2019
    David101 likes this.
  9. mousegunner

    mousegunner

    Joined:
    Oct 31, 2010
    Messages:
    187
    For your consideration, a drop tube with baffles to slow down the powder.

    I added some brass baffles to an aluminum tube and I have it so I can drop a charge into my 505 scale the finish off with my Omega trickler. A few Varget kernels may jump out but a lot more splash out on a straight drop.

    Powder splashing isn't an issue on electric scales with deep powder pans but for a beam scale it is, if that's what you use. Anywho mine works but I may look to 3D printing one that's better for what I want. You had a good idea.

  10. NealC

    NealC

    Joined:
    Apr 1, 2015
    Messages:
    28
    20190319_183442.jpg Here are the different prints I received from Shapeways (3D printing service). I like the clear one the best.

    Last edited: Mar 21, 2019
  11. mousegunner

    mousegunner

    Joined:
    Oct 31, 2010
    Messages:
    187
  12. NealC

    NealC

    Joined:
    Apr 1, 2015
    Messages:
    28

    Bc'z likes this.
  13. K9TXS

    K9TXS

    Joined:
    May 22, 2018
    Messages:
    83

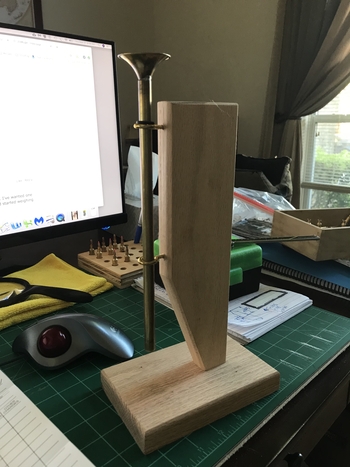

    I shortened one of my brass drop tubes that I use to use for black powder. This one is 10" long. I have found that if you have to use a drop tube for your powder, dropping it straight from the powder measure does not work for me since it drops the whole load at one time. I drop it in the pan, weight it, trickle it up if needed and then slowly run it through the drop tube. No more issues for me.

    [​IMG]

    Bc'z likes this.
  14. perry42

    perry42 Gold $$ Contributor

    Joined:
    Jan 27, 2016
    Messages:
    518
    Try Area 19 for powder funnels and drop tubes.

    perry42
