Dasher chamber question for the experts

Discussion in '6BR, 6BR Improved & Wildcats' started by Carl Ross, Feb 13, 2018.

  1. Carl Ross

    Carl Ross

    Joined:
    Jul 29, 2011
    Messages:
    12
    I screwed on a fresh 6 Dasher barrel today from a new gunsmith I haven't used before. In the course of getting it set up I noticed the base of the chamber seems REALLY tight. So I started taking some measurements.

    At the .200" line here's what I've got:

    New Lapua 6 BR Brass: .4693"
    8x Fired Lapua Dasher brass from previous barrel: .4712"
    8x Fired Lapua Dasher, sized in either a Forster FL die or Whitley's Redding FL die: .4708"

    The fourth decimal place is an eyeball measurement off my micrometer, but they were all pretty repeatable numbers.

    FWIW, the sized Lapua Dasher will chamber and extract with zero resistance in my current (old) chamber, the bolt just falls open and closed.

    Chambering the sized Lapua Dasher brass (.4708") in the new chamber will shave brass off the base and require aggressive tapping of the bolt beyond the primary extraction cam to remove.

    Chambering the new, unfired Lapua 6 BR brass (.4693") in the new chamber will take a little sharpie mark off the base, and will require a little extraction camming action (tiny click).

    Is this a situation a Harrel's D4 die could help with, or am I going to fight this for as long as I use this chamber?

    Appreciate it guys,
    Carl

    dmoran likes this.
  2. dkhunt14

    dkhunt14

    Joined:
    Jan 15, 2012
    Messages:
    5,207
    First off, I don't think a chamber should shave off brass. It must be really sharp on edge or something.. You can try a small base die and see if you can get a little more size on case. Or you can send Harrels a fired case and they should have a die to size it. They have multiple sizes. Call them and see. Matt

    geraldgee likes this.
  3. avidflyer

    avidflyer Silver $$ Contributor

    Joined:
    Apr 12, 2012
    Messages:
    425
    What are the specs on the neck. Ive seen a very tight neck cause issues like this... Guy couldn’t chamber new brass and very stiff

  4. Carl Ross

    Carl Ross

    Joined:
    Jul 29, 2011
    Messages:
    12
    Neck is .272”, so no turn. Also I confirmed the base is the only place touching via sharpied cases, both formed Dasher and new BR.

  5. nmjwolf

    nmjwolf

    Joined:
    Jun 8, 2012
    Messages:
    123
    Ask for a reamer print. The 200 dimension could be too tight for your sizing dies...

    I had a dasher with a .4700 dimension and needed to use a small base 308 die every firing even when sizing with a D4 from Harrells....it was sucky.

  6. dmoran

    dmoran Gold $$ Contributor

    Joined:
    Nov 25, 2004
    Messages:
    3,265
    When you say "the base", do you mean at or near the .200" line or some where else?
    Would like a better description or picture of where your getting brass shaving/swiping off the case(s).

    Brass swiping on the base of the case-head, the length to the shoulder is culprit = more set back is needed.
    Brass swiping of the webbing/expansion line, the diameter is culprit = a smaller diameter die will be needed.
    Donovan

    nmjwolf likes this.
  7. Carl Ross

    Carl Ross

    Joined:
    Jul 29, 2011
    Messages:
    12

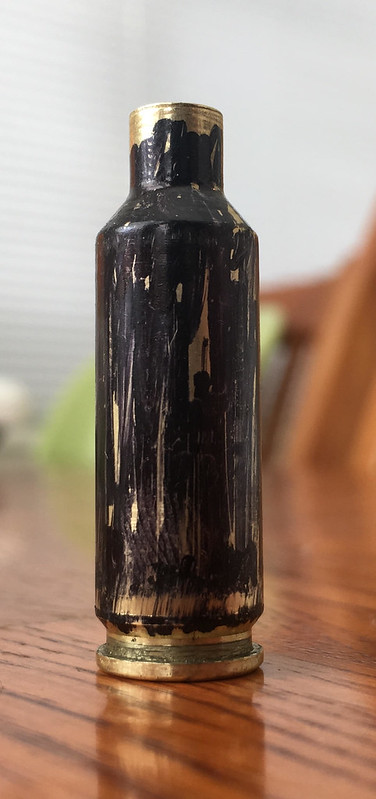

    I mean the .200" line Donovan. This is where I am measuring and also where I'm shaving brass. I suppose I can order a tight die and see how it goes...

    [​IMG]

    dmoran likes this.
  8. Sheldon N

    Sheldon N Silver $$ Contributor

    Joined:
    Jan 20, 2015
    Messages:
    725
    Dang that's a really tight chamber if even virgin brass at .4693 is having issues. I can't imagine someone would spec a reamer that small. Agree with the comment above to ask for reamer specs from your gunsmith.

    Any possibility that your gunsmith was using an overly worn reamer?

  9. Rushty

    Rushty Gold $$ Contributor

    Joined:
    Nov 28, 2013
    Messages:
    753
    I would also recommend seeing the smith about reamer dimensions.. seems tight.

  10. 22DASHER

    22DASHER Gold $$ Contributor

    Joined:
    Jul 16, 2010
    Messages:
    1,285
    Just a thought from what I have seen and heard.... just because the reamer was spec’d out at a certain dimension does not mean that is the actual dimension. This has happened more than once. Take those numbers with a grain of salt.

    LRPV and Bamban like this.
  11. swd

    swd Gold $$ Contributor

    Joined:
    Nov 25, 2008
    Messages:
    1,800
    That chamber is too tight at the back end, no way around it. Yes your always going to fight it. Pull the barrel and have a reamer with correct dimensions run in it before you pull your hair out in frustration.

    Last edited: Feb 14, 2018
    LRPV, DBLNUT, mr.big and 2 others like this.
  12. Dusty Stevens

    Dusty Stevens COVFEFE Gold $$ Contributor

    Joined:
    May 8, 2014
    Messages:
    7,003
    No chamber should ever be sharp enough to shave brass even if it was so small it rubbed

    gunsandgunsmithing and dkhunt14 like this.
  13. Carl Ross

    Carl Ross

    Joined:
    Jul 29, 2011
    Messages:
    12
    This is what I was thinking. Just wanted to make sure I wasn’t missing anything. Thanks for the input guys.

    swd and dmoran like this.
  14. Mulligan

    Mulligan Gold $$ Contributor

    Joined:
    Jul 19, 2015
    Messages:
    765
    Just a thought,

    Isn’t the Norma dasher brass a bit smaller at the base? Could your smith have used a reamer designed for the Norma brass?

    CW

    Rushty and dmoran like this.
  15. Carl Ross

    Carl Ross

    Joined:
    Jul 29, 2011
    Messages:
    12
    My 1st run Norma Dasher brass (I’ve got both Norma and Lapua but this barrel was slated for Lapua) measures around .468” at the .200” line. I discovered last night that if I trim a piece of Norma it chambers fine. The barrel is stamped 6 L-Dasher (for Lapua) and the neck also isn’t cut deep enough for untrimmed Norma, so I don’t think it was a Norma reamer mix up.

    Does anyone know of a tighter base die meant for the Norma brass?

    I’d normally contact the ‘smith, but it was such a pain to get the barrel from him in the first place that I’d honestly rather pay someone else to fix it if I cannot find a workable die/brass solution.

  16. 3dogs

    3dogs

    Joined:
    Jul 23, 2011
    Messages:
    164
    Carl
    Take it over to Alex
    Jim

    Last edited: Feb 14, 2018
  17. tclaunch

    tclaunch Silver $$ Contributor

    Joined:
    Jan 22, 2009
    Messages:
    1,478
    or am I going to fight this for as long as I use this chamber?

    ^^^
    This, get it done right with a reamer with same base @ .200" as your old one .4714"

  18. Carl Ross

    Carl Ross

    Joined:
    Jul 29, 2011
    Messages:
    12
    I sense a consensus, thanks again for the input guys. :)

  19. Tim Singleton

    Tim Singleton Gold $$ Contributor

    Joined:
    Apr 12, 2012
    Messages:
    1,937
    Is the scrape place on the brass uniform all the way around?
    Deeper or heavier mark on one side than the other?

  20. Tim Singleton

    Tim Singleton Gold $$ Contributor

    Joined:
    Apr 12, 2012
    Messages:
    1,937
    Does it scrape virgin 6br lapua brasss? If not
    Its worth fire forming a couple new pieces of brass in it to see how it does
    If the brass never blows out at the base with the tighter chamber it should resize and work fine.
    you just cant use the brass blown out in the larger chamber in it
