6.5 SLR/S Improved - Ready for testing

Discussion in 'Big Stuff -- 6.5mm, 7mm, 30 Cal' started by Rockfish Dave, Aug 5, 2013.

  1. Rockfish Dave

    Rockfish Dave

    Joined:
    Sep 24, 2010
    Messages:
    71
    Well I just got back my chambered barrel.

    I've processed a 100 cases for testing. I had deburred the flash holes, uniformed the primer pockets, chamfered the necks and annealed after sizing.

    I used the Frankford Arsenal OAL Gauge and came up to similar measurements as posted on his website.

    So how is mine "improved" (highly subjective since it is not tested)? I changed the dimensions to blow out some of the taper. I decided to try this since my 284 Shehane has worked so well, I figured why not try it on this as well?

    The down side is 2 sets of Sizing dies.

    My only concern is the extraction. If it extracts fine then I'm a happy camper. If it does not then I just sank a ton of $ just to learn one way not to do it.

  2. Rockfish Dave

    Rockfish Dave

    Joined:
    Sep 24, 2010
    Messages:
    71
    Forgot to add details on the test platform:

    Surgeon 591R
    McRee Chassis
    Bartlien SS gain twist starting at 1:8.75 ending in 1:8, 26" finished length.
    Jewel Trigger
    Vortex Razor 5-20 HD/Vortex Rings/Vortex Level

    That pretty much sums it up. I'm hoping this isn't a colossal mess.

  3. 22BRGUY

    22BRGUY Silver $$ Contributor

    Joined:
    Feb 25, 2009
    Messages:
    1,393
    Thanks for info Dave...I'm interested in your project as I've been looking at the 6.5 SLR for awhile now. The shoulder on the standard SLR is 30 degrees, my understanding....approximately what angle do you think will be on your improved? and what loads/powder/bullet combo are you trying? Thanks much and Best Wishes

  4. Rockfish Dave

    Rockfish Dave

    Joined:
    Sep 24, 2010
    Messages:
    71
    I said "improved" because it is slightly changed. I changed only the taper of the case, similar to the Shehane modifications to the 284 win case.

    The shoulder remains the 30 degree of the original 6.5 Super LR/S.

    Powder is: H4350
    Bullet is: Lapua 139 gr Scenar
    Brass is: 243WIN
    Primer is: CCI BR2


    For fire forming loads (reduced loads) I have the following in .2 grain increments:
    Starting loads 40.2gr
    Ending Loads 41.0gr

    jfjohn77 likes this.
  5. 22BRGUY

    22BRGUY Silver $$ Contributor

    Joined:
    Feb 25, 2009
    Messages:
    1,393
    Thanks Dave...Will be watching for your results.Gotta ask though how or what you feel would be the benefit to this?? (forgive my ignorance)

  6. Rockfish Dave

    Rockfish Dave

    Joined:
    Sep 24, 2010
    Messages:
    71
    Why do it?

    For a little more capacity; since I would be losing a little capacity with the 6.5 SLR/S resizing.

    I am hoping that the larger case capacity will allow lower pressures to get the same velocity and a little better case life.

    With the full power fire formed loads I hope to get around 3,000 fps. I may be overly optimistic, but part of the fun is finding out.

    As much as it was of: 'If I am going to do a wildcat, why not go all in?'

    Is it worth it? That is subjective.

    I really like my 284 Shehane and have no regrets. If this performs incrementally better as the Shehane does, then for me it will be worth it.

  7. 22BRGUY

    22BRGUY Silver $$ Contributor

    Joined:
    Feb 25, 2009
    Messages:
    1,393
    Thanks, sounds like fun for sure.

  8. Rockfish Dave

    Rockfish Dave

    Joined:
    Sep 24, 2010
    Messages:
    71
    Just got to fire form one case and thought I'd post some comparative photo's

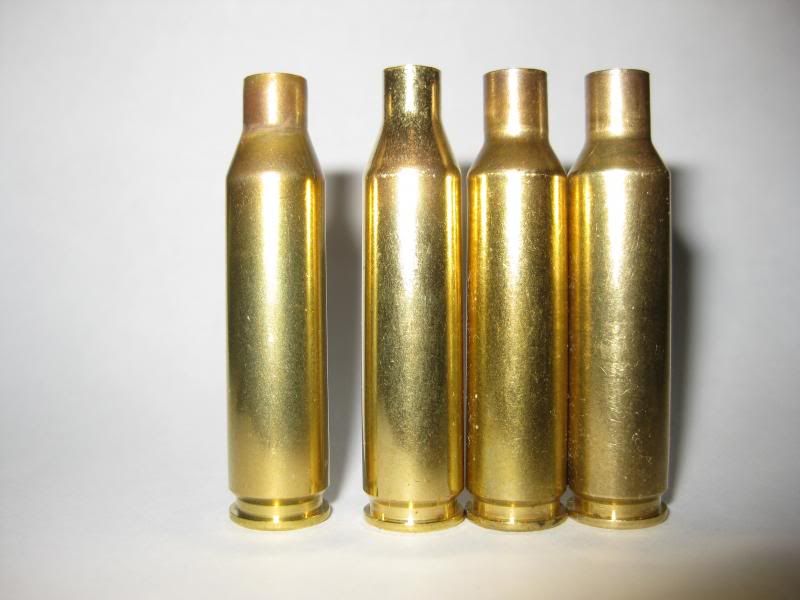

    260REM-243WIN-6.5SLR-6.5SLR Imp
    [​IMG]

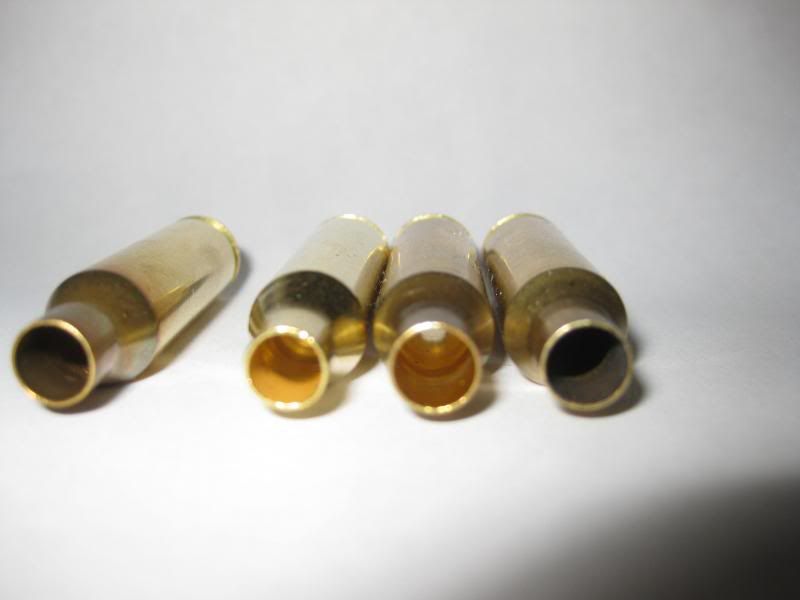

    260REM-243WIN-6.5SLR-6.5SLR Imp
    [​IMG]

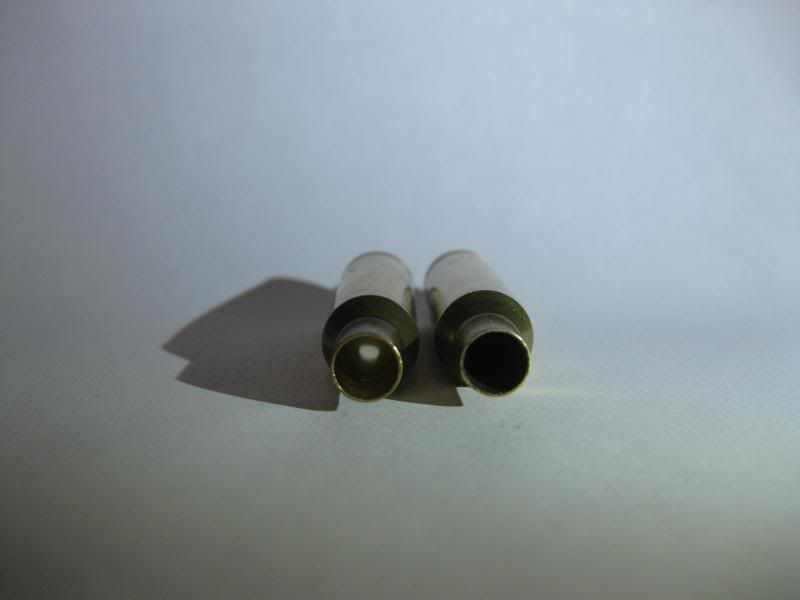

    6.5SLR-6.5SLR Imp
    [​IMG]

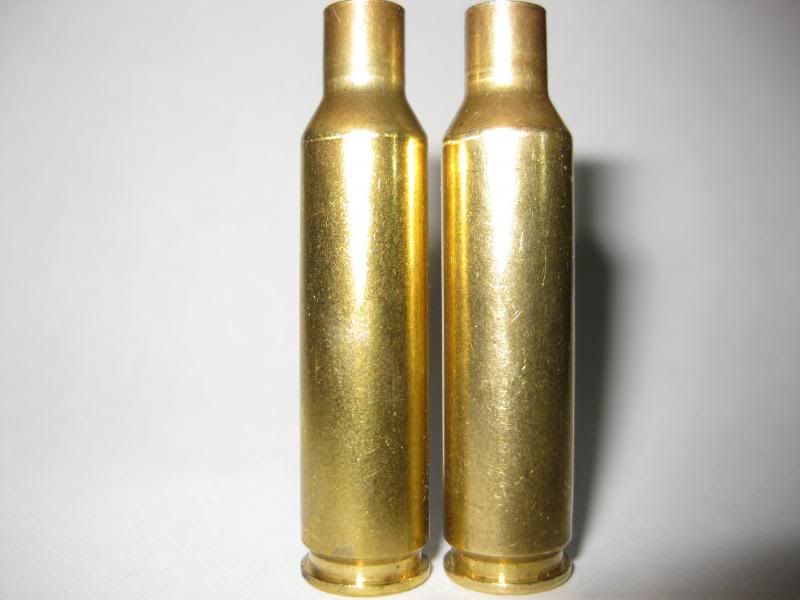

    6.5SLR-6.5SLR Improved
    [​IMG]

  9. Rockfish Dave

    Rockfish Dave

    Joined:
    Sep 24, 2010
    Messages:
    71
    Comparison of the reamer prints:

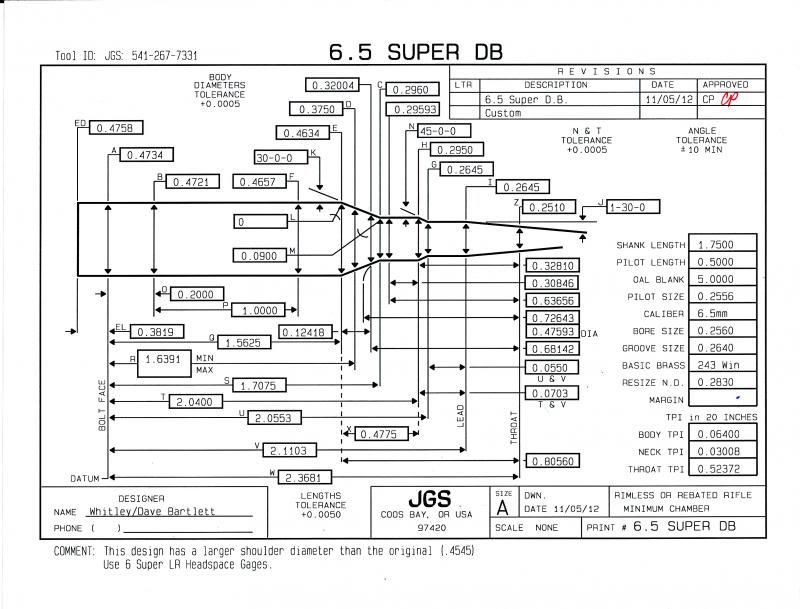

    6.5 SLR-Improved:
    [​IMG]

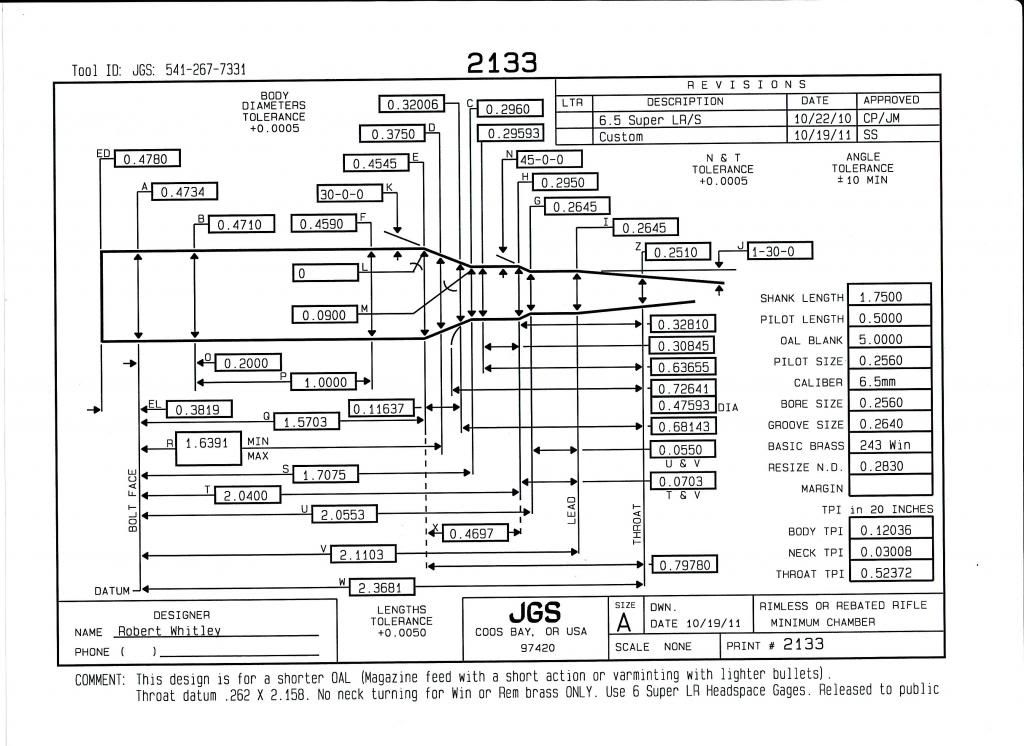

    Original 6.5 SLR/S:
    [​IMG]

  10. 22BRGUY

    22BRGUY Silver $$ Contributor

    Joined:
    Feb 25, 2009
    Messages:
    1,393
    Great pics and info Dave...really like the looks of that case. How soon before some testing do you think??? Will be waiting for results for sure. Thanks again

  11. Erik Cortina

    Erik Cortina Team Lapua Brux Borden Captain Gold $$ Contributor

    Joined:
    Jul 24, 2009
    Messages:
    4,763
    Why do you need two sets?

  12. Rockfish Dave

    Rockfish Dave

    Joined:
    Sep 24, 2010
    Messages:
    71
    Intended to do the initial fire-forming testing and barrel break in yesterday but ran out of time. I'll try again next Sat.

    I only was able to shoot one round. Extracted easily, and when I measured the case it came in at the full fire formed dimensions. The round was with a 40.2 grain charge of H4350. The velocity was 2616fps, which really does not mean anything given that it was only one shot on a new barrel.

  13. Rockfish Dave

    Rockfish Dave

    Joined:
    Sep 24, 2010
    Messages:
    71
    The SLR dies is for the first sizing before fire forming. The second set of dies is for the fire formed cases since I blew out the taper on my version.

    The last picture of the case comparison series shows the change in taper the best.

  14. Raythemanroe

    Raythemanroe Bullet Whisperer Silver $$ Contributor

    Joined:
    Oct 28, 2012
    Messages:
    3,536
    I want to know your findings on the speeds your getting!

  15. 22BRGUY

    22BRGUY Silver $$ Contributor

    Joined:
    Feb 25, 2009
    Messages:
    1,393
    Me too!

  16. Erik Cortina

    Erik Cortina Team Lapua Brux Borden Captain Gold $$ Contributor

    Joined:
    Jul 24, 2009
    Messages:
    4,763
    Can't you do the initial operation with the second set of dies? All you are changing on the first operation is the shoulder angle aren't you?

  17. Rockfish Dave

    Rockfish Dave

    Joined:
    Sep 24, 2010
    Messages:
    71
    That is a good question, and the answer is no you cannot. I tried it and without the support on the case wall the pressure of changing the shoulder collapses the cases. Again, I know because I tried it out of curiosity and that was the result.

    Once the first sizing is done the original SLR FL sizing die is no longer needed, unless prepping new brass.

    I bought my Improved dies from Whidden Gunworks. Very fast and all I needed to provide them was the reamer print. I actually received those dies faster than the SLR dies I bought from Mr. Whitley.

    If I had to do it again I'd just order both FL dies from Whidden and one bullet seating die based off of my reamer print and be done with it.

    Websites mentioned above:
    http://whiddengunworks.net/reloadingdies.html
    http://6mmar.com/65_SuperLR.php

  18. Erik Cortina

    Erik Cortina Team Lapua Brux Borden Captain Gold $$ Contributor

    Joined:
    Jul 24, 2009
    Messages:
    4,763
    Makes sense. I played with a wildcat where the shoulder had to be pushed back, and I found annealing before pushing shoulder back was beneficial. Either way it's fun playing with wildcats. Have fun!

  19. Rockfish Dave

    Rockfish Dave

    Joined:
    Sep 24, 2010
    Messages:
    71
    Thanks for the tip, I'll do the annealing first on the next batch.

  20. Rockfish Dave

    Rockfish Dave

    Joined:
    Sep 24, 2010
    Messages:
    71
    Finally shot the first 25 rounds and all I can say is WOW. Worst five shot group was 1/2 moa, second worst 1/4 moa and the rest one hole groups (excluding the first cold bore).

    To say I'm happy would be an under statement!

    Bartlien spun up a heck of a barrel!

    I'll post pics of post fired brass and the groups after running them through the measurement software and the chronograph results (not too happy about those, but may change after the initial fire forming rounds).
